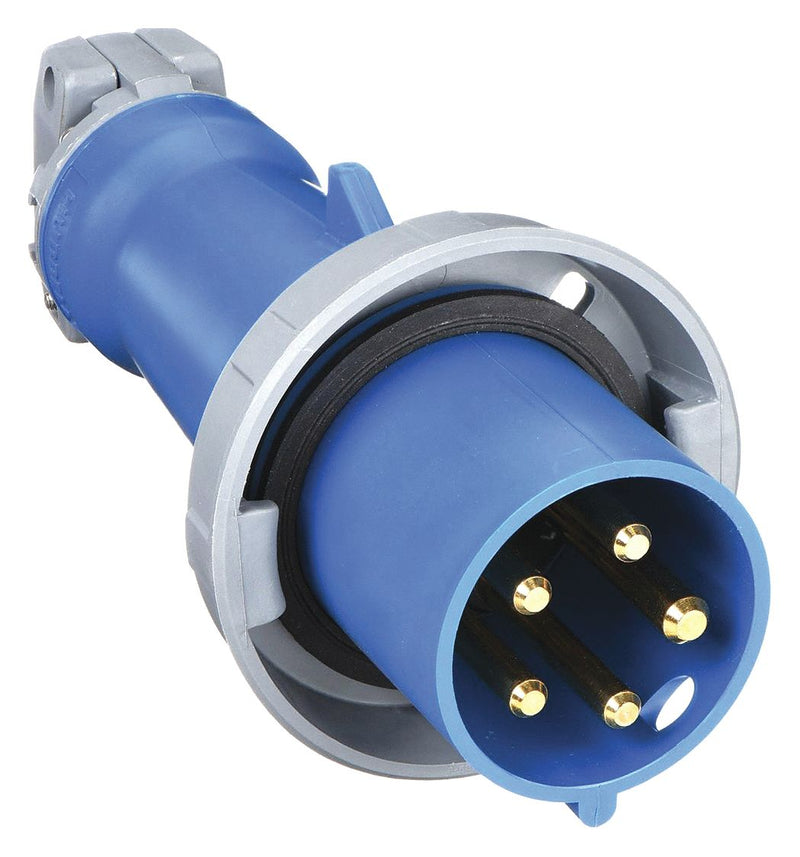

Hubbell HBL560P9W IEC Pin and Sleeve Plug, 60A, 120/208V AC, 3-Phase, 4-Pole, 5-Wire, Blue
Original price
$773.12
-
Original price
$773.12
Original price
$773.12
$773.12
-
$773.12
Current price
$773.12
Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
| Current Rating | 60 A |
|---|---|
| Voltage Rating | 120/208V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| IP Rating | IP67 |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Housing Color | Blue |
| Standards | CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, UL Listed, File E146032 |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| Body Material | Zytel 801 Nylon |
| Grounding Style | IEC |
| Features | Watertight and Abuse Resistant |
| HP | 3 hp |
| Material | Composite |
| Maximum Operating Temperature | 75 Degrees C |
| Shrouded | Yes |
| Housing Material | Non-Metallic |
| Horsepower Rating | 3 hp |
| Minimum Operating Temperature | -40 Degrees F |
| Series | HBL Heavy Duty |
| Style | Plug |
| Cord Type | All Portable |
| Environmental Conditions | Watertight |
| Country of Origin | United States |
