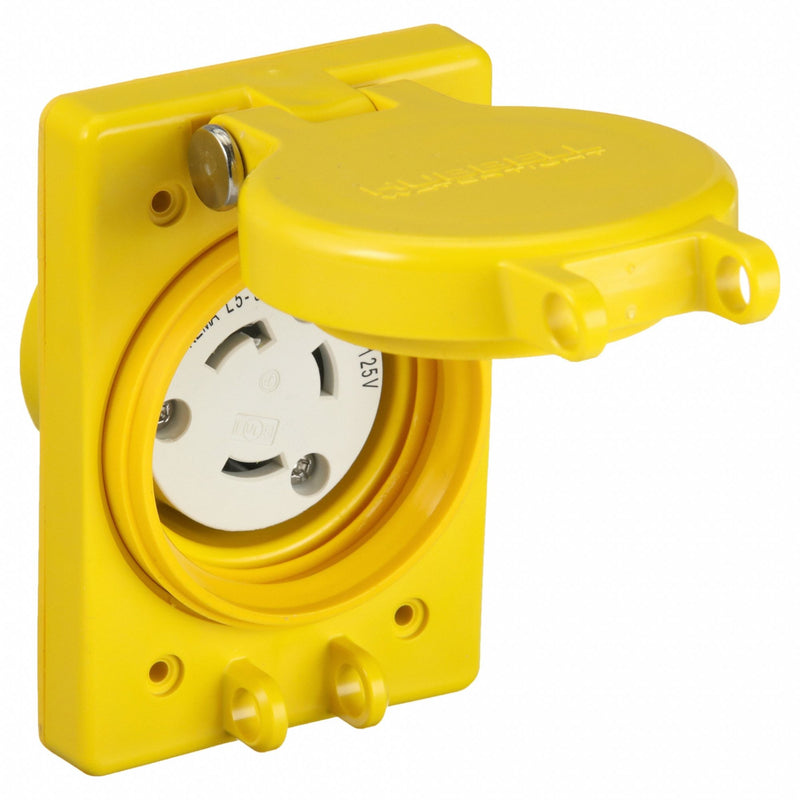

Hubbell HBL69W47 Watertight Locking Receptacle, L5-30R, 30A, 125V AC, Yellow, Single Phase
Original price
$229.52
-
Original price
$229.52
Original price
$229.52
$229.52
-
$229.52
Current price
$229.52
Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The Watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications. • Impact resistant PBT lid, cover plate, and receptacle body • Thermoplastic elastomer seal • Stainless steel hardware and corrosion-resistant connection points
| NEMA Receptacle Configuration | L5-30R |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Yellow |
| Mount Type | Flush |
| Cover Type | Flip-Up Cover |
| NEMA Enclosure Rating | 3R, 3RX, 4, 4X, 6, 6P |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Flange Type | Flanged |
| Grade | Industrial |
| Material | Nylon |
| IP Rating | IP69K |
| Mounting Type | Flush Mount |
| Wiring Style | Standard |
| Market | Industrial |
| Flange Shape | Rectangular |
| Number of Gangs | 1 |
| Polarized | Yes |
| Insulation Material | Thermoplastic Elastomer |
| Housing Material | Thermoplastic Elastomer |
| Minimum Operating Temperature | -40 Degrees F |
| Contact Material | Nickel-Plated Brass |
| Maximum Operating Temperature | 140 Degrees F |
| Connection Orientation | Straight |
| Dielectric Strength | 2500V AC |
| Body Material | PBT |
| Amps | 30 |
| Country of Origin | United States |
