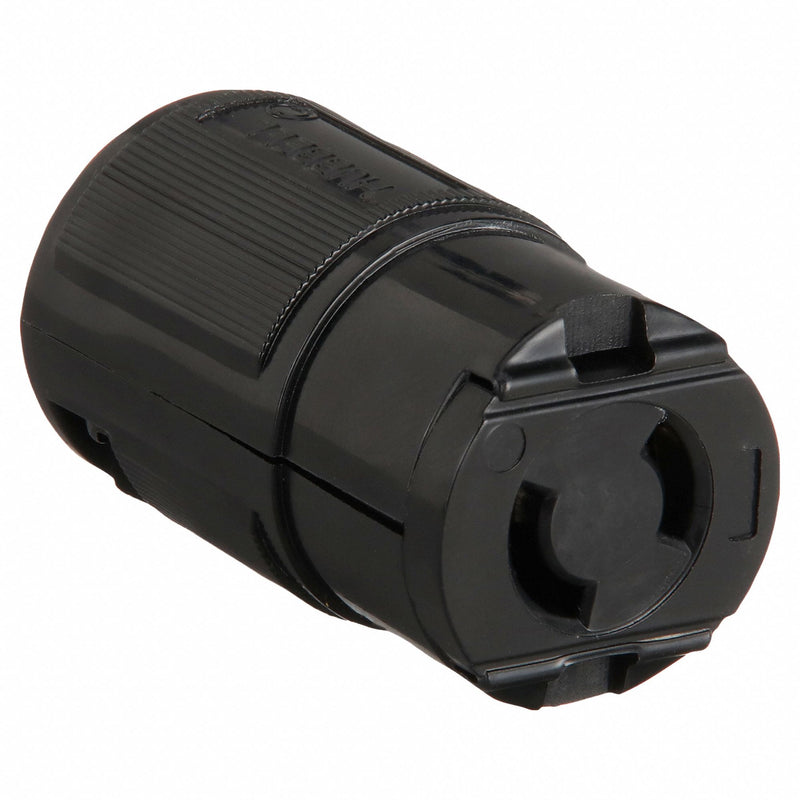

Hubbell HBL7464V Midget Locking Connector, ML1-15R, 15 A, 125V AC, 1-Phase, 2 Pole, Screw Terminals, Black
Original price
$33.24
-
Original price
$33.24
Original price
$33.24
$33.24
-
$33.24
Current price
$33.24
The Hubbell HBL7464V is a Midget Locking (ML1) Connector rated for 15 A at 125V AC, single-phase, 2-pole, 3-wire grounded. ML1-15R configuration. Screw-terminal connections accept 14 AWG-12 AWG copper wire. Constructed with a flame-retardant black nylon housing, brass blades and grounding contacts. Compact size suitable for portable equipment, retail displays, theatrical lighting and limited-space applications. Standards: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596.
| NEMA Receptacle Configuration | ML1-15R |
|---|---|
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Housing Color | Black |
| Body Material | Nylon |
| Contact Material | Brass |
| Grade | Industrial |
| Standards | UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 |
| Series | Midget Locking (ML) |
| Application | Portable equipment, retail displays, theatrical lighting |
| Country of Origin | China |
