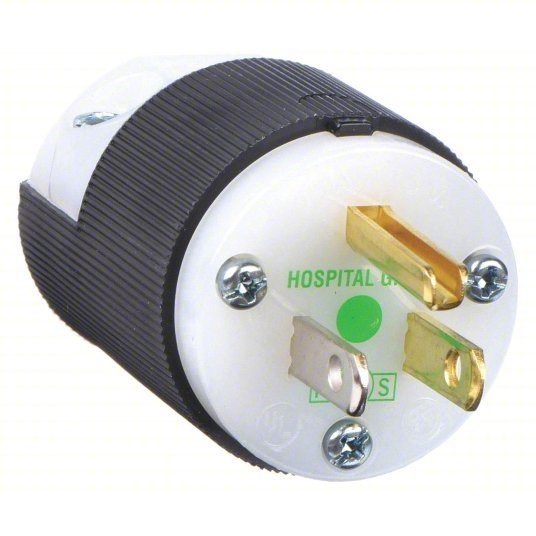

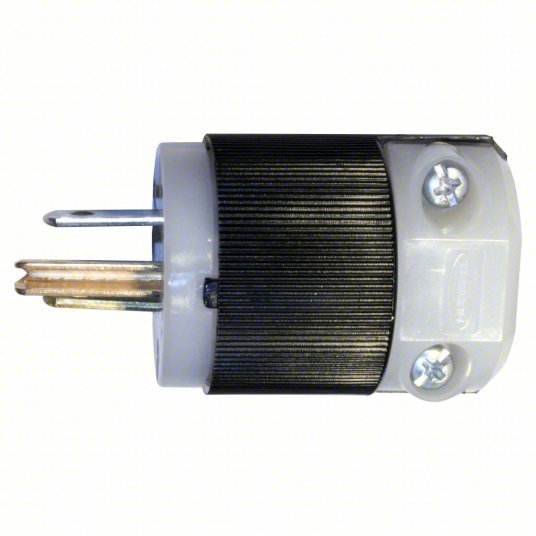

Hubbell HBL8215C Straight Blade Plug 5-15P, 15 A, 125V AC, Black/White, 2 Poles, Screw Terminals
Original price
$6.90
-
Original price
$6.90
Original price
$6.90
$27.75
$27.75
-
$27.75
Current price
$27.75
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black/White |
| Number of Poles | 2 |
| Phase | Single |
| Special Features | Corrosion resistant |
| Voltage | 125VAC |
| Grade | Hospital Grade |
| HP | 0.5 |
| Material | Nylon |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Black/White |
| NEMA Configuration | 5-15 |
| Amps | 15 |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, UL 498 File E2186 |
| Corrosion Resistant | Yes |
| Number of Blades | 3 |
| Horsepower Rating | 1/2 hp |
| Voltage Rating | 125V AC |
| Resistance Properties | Corrosion Resistant |
| Grounding | Grounded |
| Housing Color | Black, White |
| Wire Connection Type | Screw Terminals |
| Insulation Material | Nylon |
| Housing Material Finish | Nickel Plated |
| Housing Material | Nylon |
| Current Rating | 15 A |
| NEMA Plug Configuration | 5-15P |
| Connection Orientation | Straight |
| Power Indicating Lights | Without Power Indicating Lights |
| Polarized | Yes |
| Maximum Operating Temperature | 75 Degrees C |
| UL 94 Flammability Rating | HB |
| Minimum Operating Temperature | -40 Degrees C |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Body Style | Straight |
| Flammability | UL 94 HB or better |
| Dielectric Strength | Withstands 2000V AC minimum |
| Connector Type | Insulgrip |
| Weight (Lbs.) | 0.15 |
