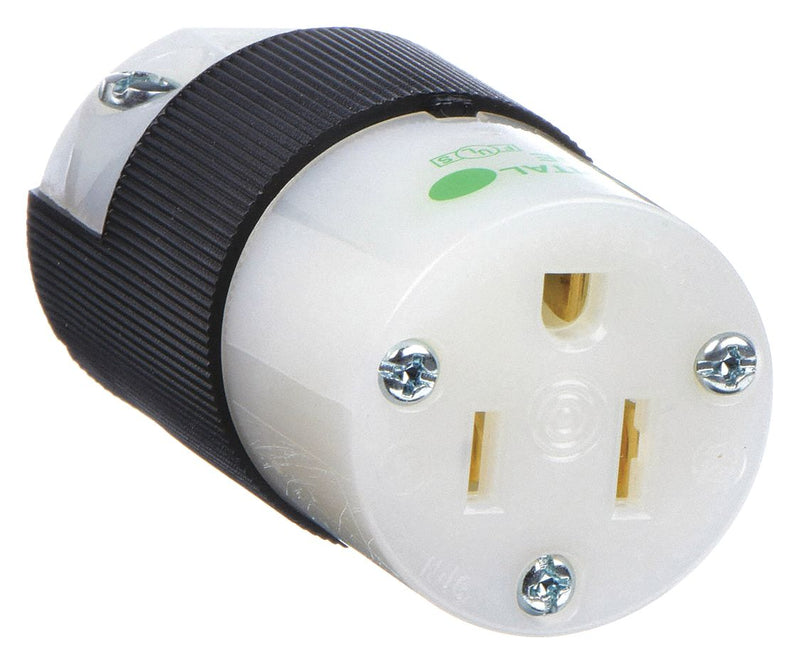

Hubbell HBL8219C Straight Blade Connector, Hospital Grade, 5-15R, 125V AC, 15 A, Black/White
Original price
$58.46
-
Original price
$58.46
Original price
$58.46
$58.46
-
$58.46
Current price
$58.46
Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Hospital Grade, Grounding Grounded
| NEMA Receptacle Configuration | 5-15R |
|---|---|
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap or Cover |
| Maximum Operating Temperature | 75 Degrees C |
| Minimum Operating Temperature | -40 Degrees C |
| IP Rating | IP20 |
| Standards | CSA Certified, NEMA WD-6, UL Listed |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Grade | Hospital Grade |
| Material | Nylon |
| Housing Material | Thermoplastic Elastomer |
| Horsepower Rating | 1/2 hp |
| Polarized | Yes |
| Contact Material | Copper |
| Weight | 0.2 lb |
| Country of Origin | United States |
