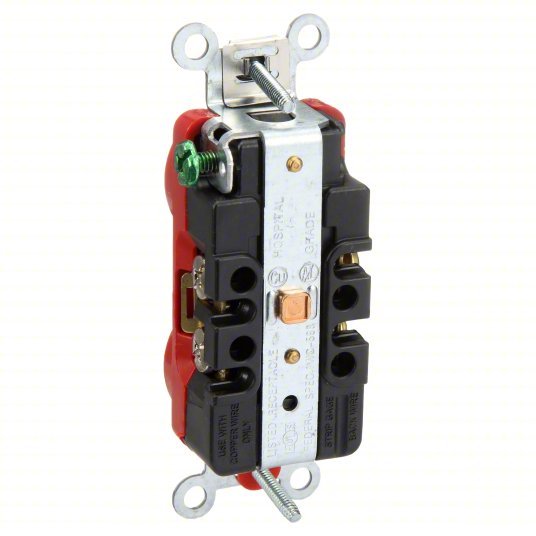

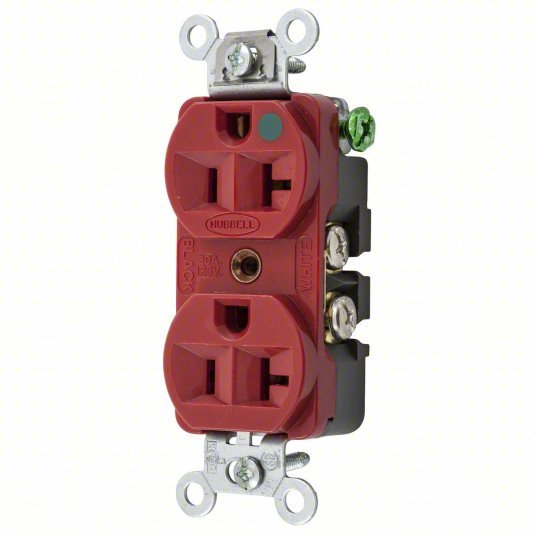

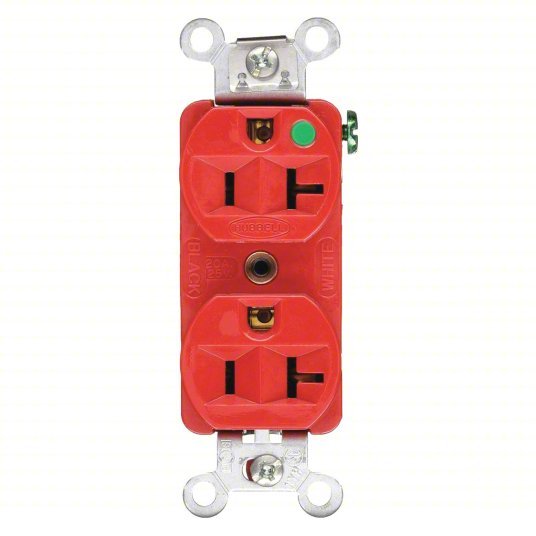

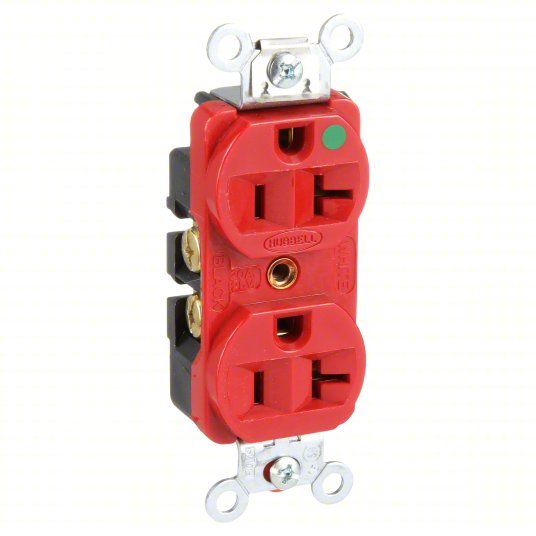

Hubbell HBL8300HRED Receptacle 5-20R, 20 A, 125V AC, Red, 2 Poles
Original price
$46.90
-
Original price
$46.90
Original price
$46.90
$46.90
-
$46.90
Current price
$46.90
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Heavy Use Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Sub-Category | Duplex Receptacles |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Corrosion Resistant | No |
| Description | Slender/Compact |
| Weather Resistant | No |
| Amps | 20 |
| Material | Thermoplastic Polyester |
| Color - Plugs and Receptacles | Red |
| NEMA Configuration | 5-20 |
| Color | Rouge |
| Number of Wires | 3 |
| Wiring Method - Plugs and Receptacles | Back and Side |
| Number of Gangs | 1 |
| Weather Resistant - Plugs and Receptacles | No |
| Item | Traditional Duplex |
| Voltage | 125VAC |
| Number of Poles | 2 |
| HP | 1 hp |
| Outlet Type | Duplex |
| Mounting Type | Flush |
| Phase | Single Phase |
| Wiring Method | Back, Side |
| IP Rating | IP20 |
| Carton Quantity | 10 |
| Voltage Rating | 125 V |
| Amperage | 20 A |
| Number Of Wires | 3-Wire |
| Series | Hospital Grade |
| Maximum Horsepower | 1 |
| Nema Rating | 5-20R |
| Type | Duplex Receptacle |
| Number Of Poles | 2-Pole |
| Connectivity | Back and Side Wired Screw Terminals |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Brand | Hubbell Wiring Device-Kellems |
| Style | Slender/Compact |
| Contact Material | Brass |
| Additional Electrical Protections | Standard Protection |
| Mount Type | Flush |
| Surge Protection | No |
| NEMA Receptacle Configuration | 5-20R |
| AFCI | No |
| Polarized | Yes |
| Horsepower Rating | 1 hp |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Wire Connection Types | Screw Terminals |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Housing Color | Red |
| Shrouded | No |
| NEMA Enclosure Rating | 1 |
| Market | Commercial |
| Includes Mounting Hardware | Yes |
| Additional Electrical Protection | Standard Protection |
| Minimum Operating Temperature | -40 Degrees F |
| UL 94 Flammability Rating | V-0 |
| For Location | Indoor |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 167 Degrees F |
| Key Resistance Properties | Standard Resistance |
| Resistance Properties | Impact Resistant |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Terminal Accommodation | #12-#10 AWG stranded or solid copper wire only |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Current Interrupting | Certified for current interrupting at full rated current |
| Automatic Self-grounding Staple | Stainless steel |
| Terminal Screws | Brass |
| Mounting Screws | Zinc plated steel |
| Mounting Strap | .050 in. (1.3) Galvanized steel |
| Base | PBT |
| Ground Contacts | .031 in. (.8) Brass |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Contacts | 0.031" (0.8) Brass |
| Flammability | UL 94 V-0 |
| Face | Nylon |
| Device Color | Red |
| Clamping Plate | Nickel plated steel |
| Dielectric Voltage | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Hospital Grade |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Item Type | Traditional Duplex |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Amperage Rating | 20 A |
| Horsepower - Maximum | 1 |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
