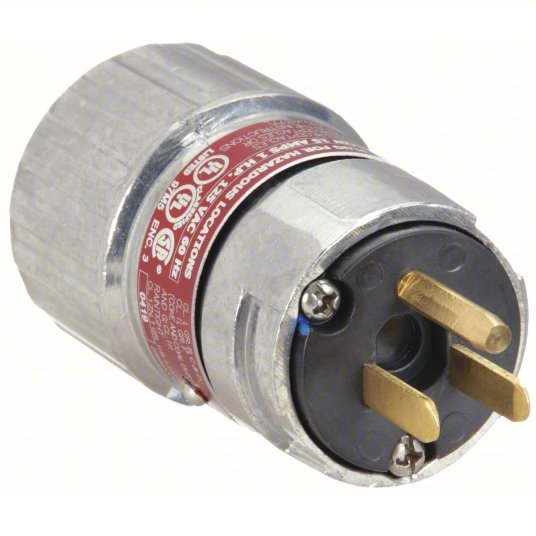

Hubbell UGP-15231QWWW Plug 5-15P, 15 A, 125V AC, 2 Poles, Metallic

Hubbell UGP-15231QWWW Plug 5-15P, 15 A, 125V AC, 2 Poles, Metallic

$184.34 - $184.34
$184.34
$184.34 - $184.34
$184.34
Plug, Connection Orientation Angled, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Voltage 125V AC
NEMA Rating 3, 7, 9
Amps 15 A
Standards CSA Certified, UL Listed
HP 1 hp
Number of Wires 3
Number of Poles 2
NEMA Type 5-15P
Material Copper-Free Aluminum
Hz 60
Finish Unfinished
IP Rating Not Rated
Grounding Grounded
Polarized No
Housing Material Metallic
Housing Color Gray
Horsepower Rating 1 hp
Connection Orientation Angled
Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Wiring Style Standard
Wire Connection Type Screw Terminals
Phase Single
Current Rating 15 A
Number of Blades 3
NEMA Enclosure Rating 3, 4, 4X
NEMA Plug Configuration 5-15P
Housing Material Finish Baked Powder Epoxy/Polyester Coated
Resistance Properties Corrosion Resistant
For Location Indoor, Outdoor
NEMA Configuration 5-15
Voltage Rating 125V AC
