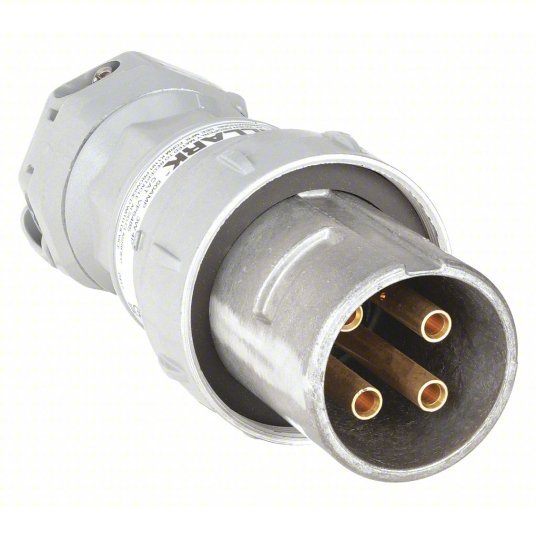

Hubbell VP6485 Pin & Slve Plug, 60A, 4P, 3W, 600VAC/250VDC
Original price
$768.99
-
Original price
$768.99
Original price
$768.99
$768.99
-
$768.99
Current price
$768.99
Pin and Sleeve Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 2.25 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum, Maximum Wire Size 2 AWG
| Amps - Plugs and Receptacles | 60 A |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Finish | Epoxy Polyester |
| Standards | CSA Certified LR111846, UL E10757 |
| Voltage | 600V AC/250V DC |
| Amps | 60 A |
| NEMA Rating | 4x |
| Item | Pin and Sleeve Plug |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Features | Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Phase | Three |
| For Location | Indoor, Outdoor |
| Shrouded | Yes |
| Wire Connection Type | Screw Terminals |
| IP Rating | Not Rated |
| Connection Orientation | Straight |
| Housing Material | Metallic |
| Current Rating | 60 A |
| Reverse Service | No |
| Hazardous Location Specification | Class I, Div 1 and 2, Group A, B, C, D |
| Housing Material Finish | Baked Powder Epoxy/Polyester Coated |
| Power Indicating Light | No |
| Horsepower Rating | Not Applicable |
| Housing Color | Gray |
| Grounding | Grounded |
| NEMA Enclosure Rating | 4X |
| Market | Industrial |
| Voltage Rating | 250V DC, 600V AC |
| Cap Type | Not Applicable |
| For Environment | Cold, Corrosive, Hazardous Location, Marine, Wet |
| Type | Pin & Sleeve |
| Hz | 50-400 Hz |
| Pin & Sleeve Standards | CSA Certifications, UL Listed |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Amperage Rating | 60 A |
| Style | Style II |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Series | VersaMate |
| Grommet Range | 0.65-1.50 |
| Frequency Rating | 50-400 Hz |
