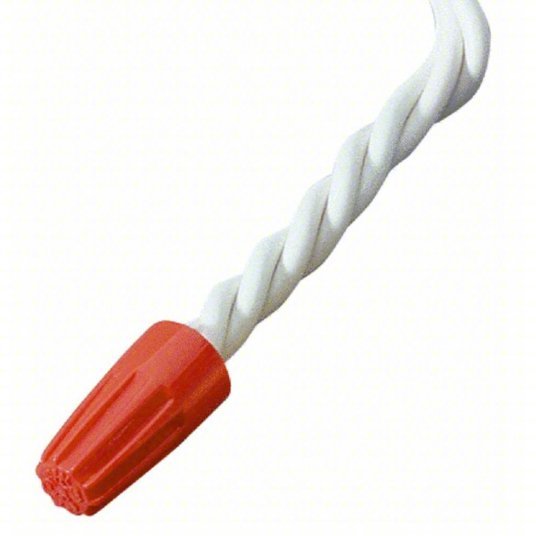

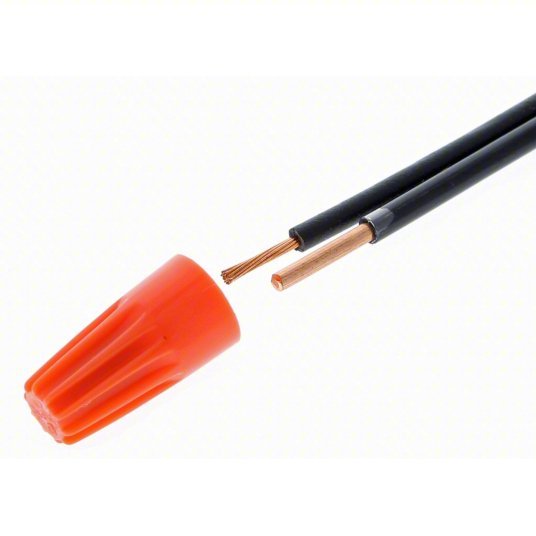

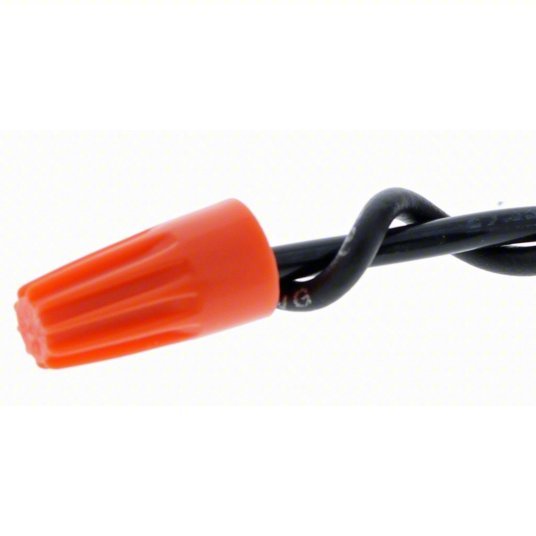

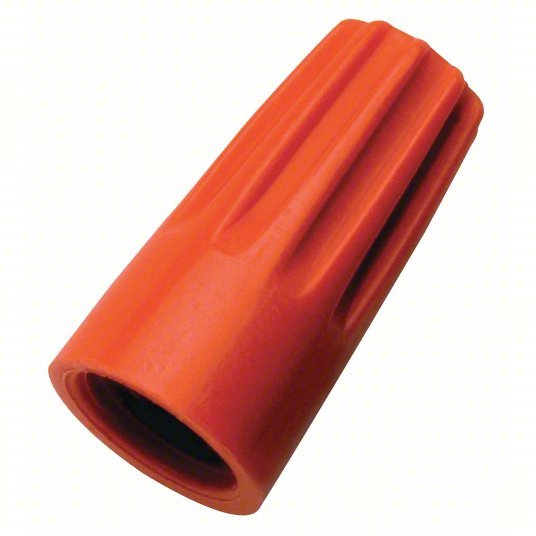

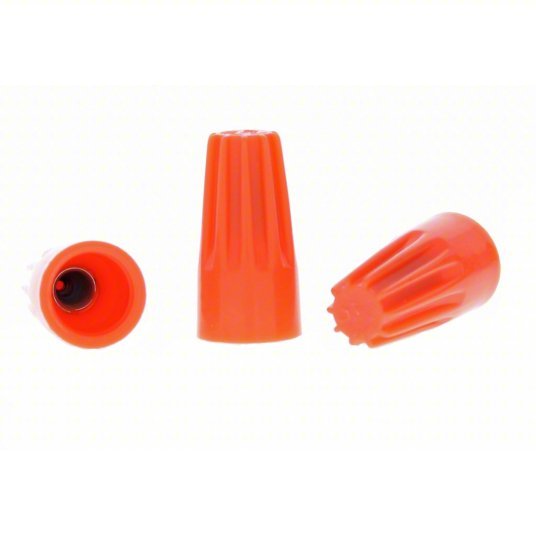

Ideal 30-073 Twist On Wire Connector Orange, 22 AWG – 14 AWG Twist-On Wire Size Ranges, 100 PK
Original price
$19.32
-
Original price
$19.32
Original price
$19.32
$19.32
-
$19.32
Current price
$19.32
Twist On Wire Connector, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (2) 14 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 4, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG, Minimum Single Wire Size 22 AWG, Overall Height 0.86 in
| Color | Orange |
| Series | 73B |
| Max. Voltage | 600V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Max. Wire Combination | (2) 14 AWG |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 Degrees F |
| Connector Type | 73B |
| Maximum Wire Combination | (2) 14 AWG |
| Special Features | Approved for Bonding and Grounding Applications, Excellent for Fine Stranded Wire Applications, Rated for Use in Air Handling Spaces, Refined Range to Handle All Common Applications, Tough, Flame-Retardant |
| High Temperature Application | No |
| For Conductor Material | Copper |
| Minimum Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Maximum Operating Temperature | 221 Degrees F |
| UL 94 Flammability Rating | V-2 |
| Insulation Material | Polypropylene |
| Maximum Conductors | 4 |
| RoHS Compliant | Yes |
| Contact Material | Steel |
| Maximum Voltage | 600 V |
| Additional Information | Flame-retardant shell, Reusable, Rated for 600 Volt maximum |
| Product Color | Orange |
| Product Type | Cable Protection |
| Cable Manager Type | Protector |
| Certifications & Standards | UL, CSA |
| Product Name | 30-073 Cable Protector |
| Maximum Rated Voltage | 600V |
| Maximum Wire Gauge | 14 AWG |
| Minimum Wire Gauge | 22 AWG |
| Twist-On Style | Non-Wing |
| Termination Method | Twist-On |
