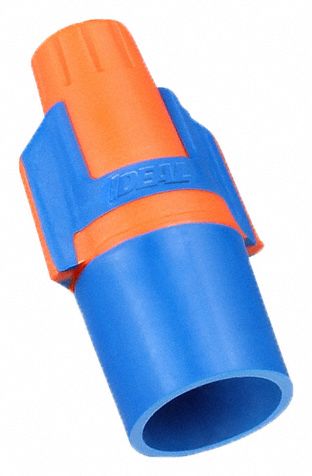

Ideal 30-343 Twist-On Wire Connectors, Wing, Blue/Orange, 14-10 AWG, 600 V, 100 PK
Original price
$28.47
-
Original price
$28.47
Original price
$28.47
$28.47
-
$28.47
Current price
$28.47
Wide-range wire connectors feature an internal coil and a shell body that expand to accommodate various wire sizes. They fit various conductor sizes and combinations and are commonly used to consolidate multiple sizes of twist-on connectors into a single standard size.
| Country of Origin | United States |
|---|---|
| Maximum Wire Size | 12 AWG |
| Minimum Wire Size | 22 AWG |
| Width | 0.56 in |
| Height | 1.05 in |
| Overall Width | 0.56 in |
| Cable Tie Length | 24.5" |
| Type | Twist-On |
| Color | Blue, Orange |
| Insulation Material | Polypropylene with TPE Overmold |
| Maximum Voltage | 600 V |
| Minimum Wire Combination | (2) 22 AWG |
| Maximum Wire Combination | (4) 12 AWG |
| Maximum Operating Temperature | 221 Degrees F |
| UL 94 Flammability Rating | V-2 |
| Material | Steel |
| Application | Wide Range |
| Standards | CSA Certified, UL Listed |
| For Conductor Material | Copper |
| Twist-On Style | Wing |
| Termination Style | Twist-On |
| Restrictions | WARNING: Cancer For more information go to www.P65Warnings.ca.gov |
