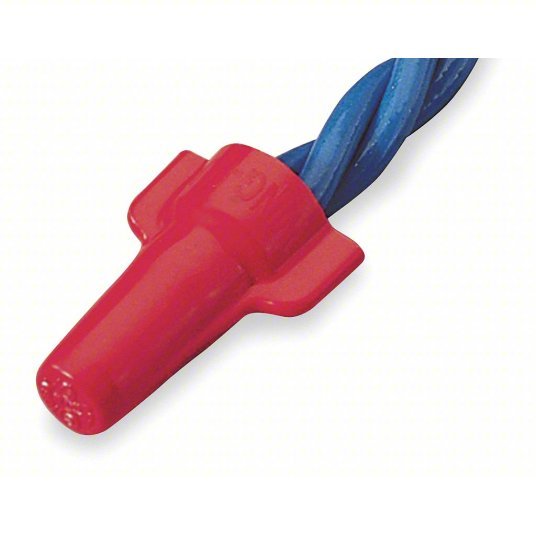

Ideal 30-452 Twist On Wire Connector Red, 18 AWG – 8 AWG Twist-On Wire Size Ranges, 100 PK

Ideal 30-452 Twist On Wire Connector Red, 18 AWG – 8 AWG Twist-On Wire Size Ranges, 100 PK

$35.05 - $35.05
$35.05
$35.05 - $35.05
$35.05
Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 18 AWG, Outside Diameter 0.6 in
Color Red
Series 452
Max. Voltage 600V AC
Wire Connector Style Wing
Min. Wire Combination (2) 18 AWG
Max. Wire Combination (4) 10 AWG
Application General Purpose
Connector Type 452
Item Twist On Wire Connector
Standards CSA Certified, UL Listed
Max. Temp. 221 Degrees F
Minimum Wire Combination (2) 18 AWG
UL 94 Flammability Rating V-2
RoHS Compliant Yes
High Temperature Application No
Maximum Operating Temperature 221 Degrees F
Contact Material Steel
Maximum Voltage 600 V
Insulation Material Thermoplastic Polyester
Maximum Wire Combination (4) 10 AWG
For Conductor Material Copper
Maximum Conductors 6
Special Features Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations
Maximum Wire Gauge 8 AWG
Maximum Rated Voltage 600V
Minimum Wire Gauge 18 AWG
Termination Method Twist-On
Twist-On Style Wing
