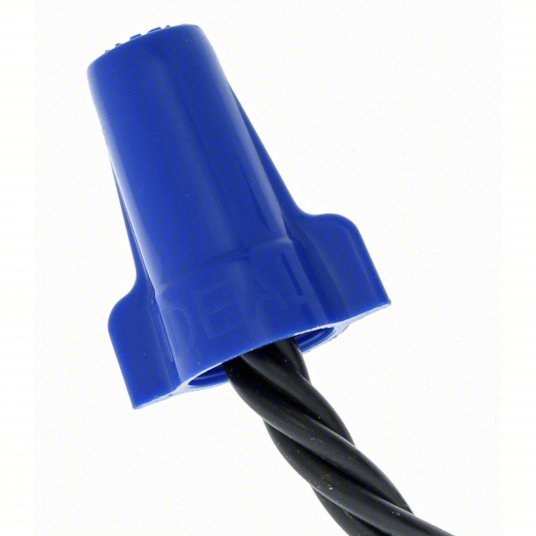

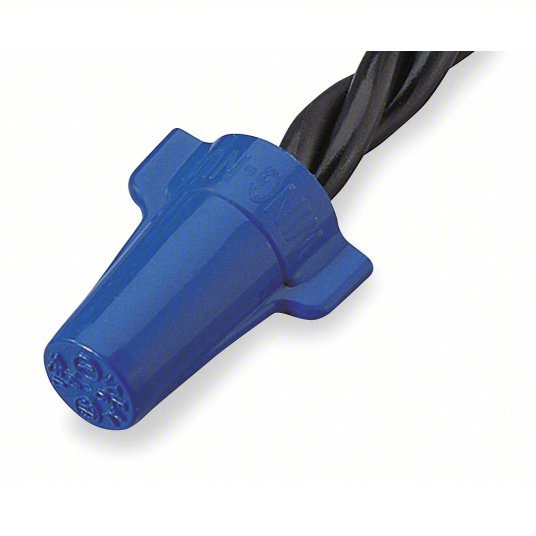

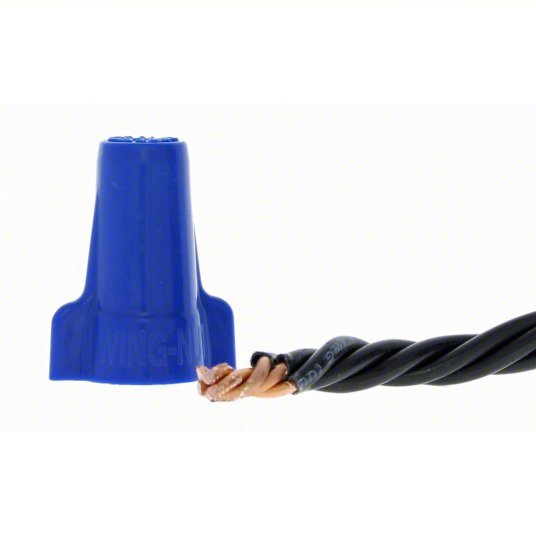

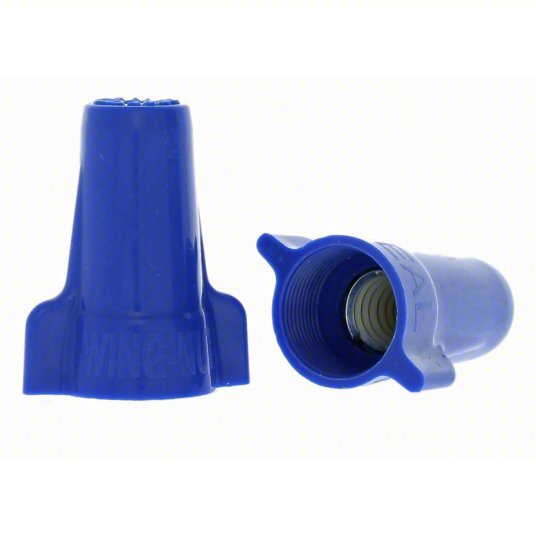

Ideal 30-454 Twist On Wire Connector Blue, 25 PK
Original price
$22.70
-
Original price
$22.70
Original price
$22.70
$22.70
-
$22.70
Current price
$22.70
| Color | Blue |
| Series | 454 |
| Max. Voltage | 600V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (3) 12 AWG |
| Max. Wire Combination | (1) 6 AWG with (2) 8 AWG |
| Application | General Purpose |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Connector Type | 454 |
| Max. Temp. | 221 Degrees F |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Combination | (3) 12 AWG |
| Maximum Operating Temperature | 221 Degrees F |
| High Temperature Application | No |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V |
| Maximum Conductors | 6 |
| Contact Material | Steel |
| Special Features | Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations |
| Insulation Material | Thermoplastic Polyester |
| For Conductor Material | Copper |
| Maximum Wire Combination | (1) 6 AWG with (2) 8 AWG |
| Minimum Wire Gauge | 14 AWG |
| Termination Method | Twist-On |
| Maximum Wire Gauge | 6 AWG |
| Twist-On Style | Wing |
| Maximum Rated Voltage | 600V |
