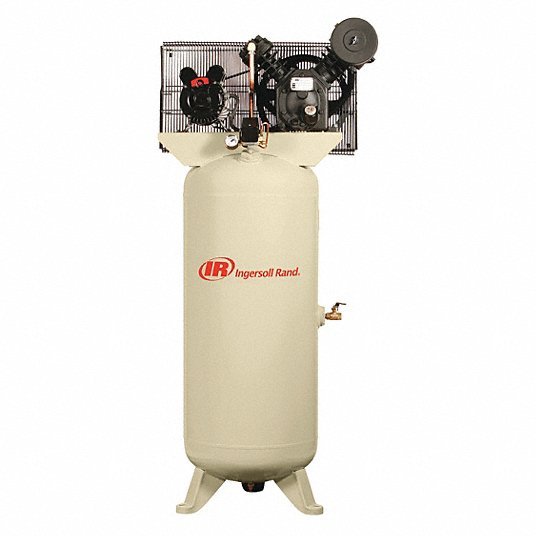

Ingersoll Rand 2340L5-V-230/3 Electric Air Compressor, 2 Stage, 14 cfm
Original price
$2,399.41
-
Original price
$2,399.41
Original price
$2,399.41
$2,399.41
-
$2,399.41
Current price
$2,399.41
| Phase | 3 |
| HP | 5 |
| Voltage | 230 |
| Tank Type | Vertical |
| Max. Pressure | 175 psi |
| Includes | Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve |
| Compressor Type | Tank Mounted |
| Free Air CFM @ Max. Pressure | 14 |
| Lubrication Type | Splash Lubricated |
| Motor Type | Open Dripproof |
| Compressor Package Type | Base Model |
| Standards | ASME, California Code, CSA |
| Off Pressure Switch Setting | 175 psi |
| Max. Pressure - Air Compressor | 175 psi |
| Style - Air Compressor | Simplex |
| Number of Stages - Air Compressor | 2 |
| ASME Tank | Yes |
| Tank Style - Air Compressor | Vertical |
| Phase - Electrical | 3 |
| Input Voltage - Air Compressor | 230V AC |
| Free Air CFM @ Max. Pressure - Air Compressor | 14.0 |
| dBA @ 3 Feet | 85.0 |
| Item - Air Compressor | Stationary Air Compressor |
| On Pressure Switch Setting | 135 |
| Pump RPM | 1,575 |
| Amps | 12.3 |
| Control | Pressure Switch |
| HP - Air Compressor | 5.0 hp |
| Item | Electric Air Compressor |
| (F)NPT Outlet | 1/2 in |
| Pump Location - Air Compressor | Tank Mounted |
| Cylinder Material | Cast Iron |
| Lubrication Type - Air compressor | Splash Lubricated |
| Hz | 60 |
| Finish | Powder Coated |
| Enclosure | NEMA 1 |
| Pump Oil Capacity | 32 oz |
| Number of Stages | 2 |
| Duty Cycle | Continuous |
| Free Air Flow Rate @ Max Pressure | 14 cfm |
| Pump Style | Simplex |
| Outlet Type | NPT |
| Air Tank Style | Vertical |
| Output Power | 5 hp |
| Frequency | 60 Hz |
| Input Voltage | 230V AC |
| Enclosure Rating | NEMA 1 |
| Sound Level Range | Standard (70 dBA or more) |
| Free Air Flow Rate @ Maximum Pressure | 14 cfm |
| Control Type | Pressure Switch |
| Current Rating | 12.3 A |
| Tank Style (Broad) | Vertical |
| Maximum Operating Pressure | 175 psi |
| Sound Level | 85 dBA |
| Outlet Gender | Female |
| Maximum Speed | 1,575 RPM |
| Enclosure Type | Open Dripproof |
| Pump Location | Top Mount |
| Max Operating Pressure | 175 psi |
| Life Expectancy | 15,000 hr |
| Compressor Voltage | 230V AC |
| Type | Base Model |
| Package Quantity | 1 |
