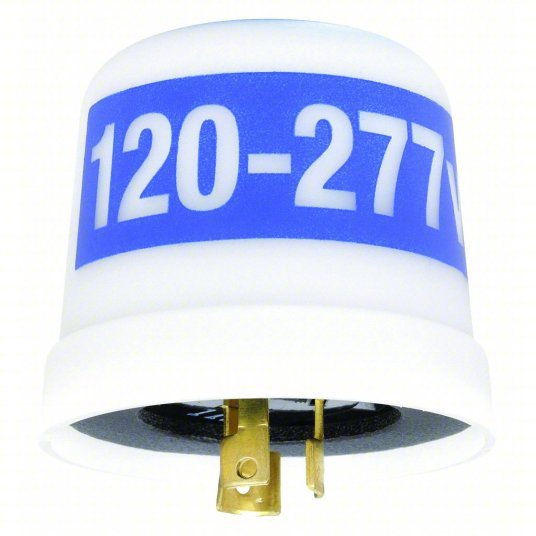

Intermatic LC4536C Photocontrol 120 to 277V AC, 2,300 W Max. Watt, 15 A Max. Incandescent Amps, 0.5, 15, Locking
Original price
$41.59
-
Original price
$41.59
Original price
$41.59
$41.59
-
$41.59
Current price
$41.59
Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 2,300, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards CSA, UL, Includes Locking Nut, Washer Gasket
| Item | Photocontrol |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Mounting | Locking |
| Voltage | 120 to 277V AC |
| Max. Wattage | 2,300 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8.3 A |
| Foot Candles On | 0.5 |
| Foot Candles Off | 15 |
| Color | White/Gray |
| Temp. Range | -40 Degrees to 158 Degrees F |
| Description/Special Features | Built in Delay |
| Contact Form | SPST |
| Housing Material | Polypropylene |
| Includes | Locking Nut, Washer Gasket |
| Standards | CSA, UL |
| Enclosure Type | Raintight |
| Setting | Dusk to Dawn |
| Accessory Type | Photocontrol |
| Photocontrol Type | Thermal |
| Input Voltage Ranges | 120-277 VAC, 50/60 Hz |
| Fail Mode | ON |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Operating Temperature Min | -40 °C |
| CSA Certification | cCSAus |
| Other Certifications | Title 20; Ansi C136.10 |
| Tungsten Load Ratings Ranges | 15 A, 1800-4155 W |
| Photocontrol Sensor Location | Side |
| Magnetic Ballast Load Ratings | 8.3 A, 1000-2300 VA |
| Expected Lifetime Operations | 3650 |
| Operating Temperature Max | 158 °C |
| Sensor Time Delay | 30 sec to 90 sec |
| Expected Lifetime Years | 5 |
| Activation On | 5 fc |
| UL Certification | UL |
| Usage Environments | Outdoor |
| Activation Off | 15 fc |
| Tungsten Load Ratings | 15 A, 1800-4155 W |
| Packaging Applications | Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting |
| Application Compatibilities | HID; Incandescent |
| Cover Color | White with Blue Band |
| Market | Commercial; Utility; Industrial |
| Solutions | Lighting Control; Panel Integrators |
| Photocontrol Style | Locking type |
| Photocontrol Switch Type | Mechanical Bimetal |
| Applications | Outdoor Lighting Control |
| Magnetic Ballast Load Ratings Ranges | 8.3 A, 1000-2300 VA |
| Operating Temperature Min (°F) | -40 |
| Photo Control Switch Type | Mechanical Bimetal |
| Operating Temperature Max (°F) | 158 |
| Magnetic Ballast (NO) | 8.3 A, 1000-2300 VA |
| Photocell Type | Cadmium Sulfide |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Features | Mechanical bimetal switch with Cadmium Sulfide photocell; Integral high impact thermoplastic housing; Locking type plug for quick installation and changeover; Delay feature prevents unwanted OFF switching; Complies with ANSI C136.10 standard; Tested to 3,650 ON/OFF cycles |
| Tungsten (NO) | 15 A, 1800-4155 W |
| Magnetic Ballast Range(s) | 8.3 A, 1000-2300 VA |
| Tungsten Range(s) | 15 A, 1800-4155 W |
