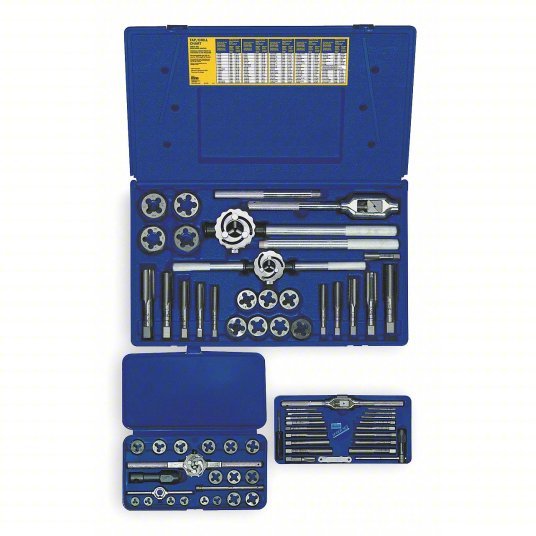

Irwin 97312 Tap and Die Set 66 Pieces, M3x0.5 Min. Tap Thread Size, M24x3.00 Max. Tap Thread Size, Hex

Tap and Die Set, Number of Pieces 66, Die Shape Hex, Die Material High Speed Steel, Thread Sizes Included M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8 In.- 28 BSP

Number of Pieces	66
Material	Carbon Steel
Thread Direction	Right Hand
Type	Metric
SAE or Metric	Metric
Die Shape	Hex
Thread Type	BSP, Metric
Tap Wrench Number	12450, 12473, 12498, 311088
Includes	Adjustable/Nonadjustable T-Handle Tap Wrench, Adjustable and Plain Die Stock, 2-in-1 Tap Wrench, 16 Leaf Metric Thread Gauge, Plastic Case
Die Material	High Speed Steel
Die Type	Adjustable
Tap Material	High Speed Steel
Finish	Plain
Tap Chamfer	Plug, Taper
Standards	ASME/ANSI B94.9-1987
Features	4-Flute Design Ensures Fast, Easy Chip Clearance
Number of Flutes	4
Number of Dies in Set	27
Threads per Inch	28
Case Type	Plastic
Tap Series	Hanson
Thread Pitch	Metric Plug Tap and 1 in Hexagon Dies in sizes: 1.00mm, 1.00mm, 1.25mm, 1.00mm, 1.25mm, 1.25mm, 1.50mm, 1.50mm, 1.50mm, 1.75mm, Metric Plug Tap and 1-13/16 in Hexagon Dies in sizes: 2.50mm, 1.50mm, 2.00mm, 3.00mm, Metric Plug Tap and 1-7/16 in Hexagon Dies in sizes: 1.50mm, 2.00mm, 1.50mm, 2.00mm, 1.50mm, 2.50mm, Metric Plug Tap and 5/8 in Hexagon Dies in sizes: 0.50mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm
Material - Machining	High Speed Steel
Primary Material Application ISO Code	H, K, M, N, P, S
Measurement System	Metric
Thread Standard	BSP, Metric
Die Material Grade	Carbon Steel
Number Of Taps	27
Primary Material Application	All Materials
