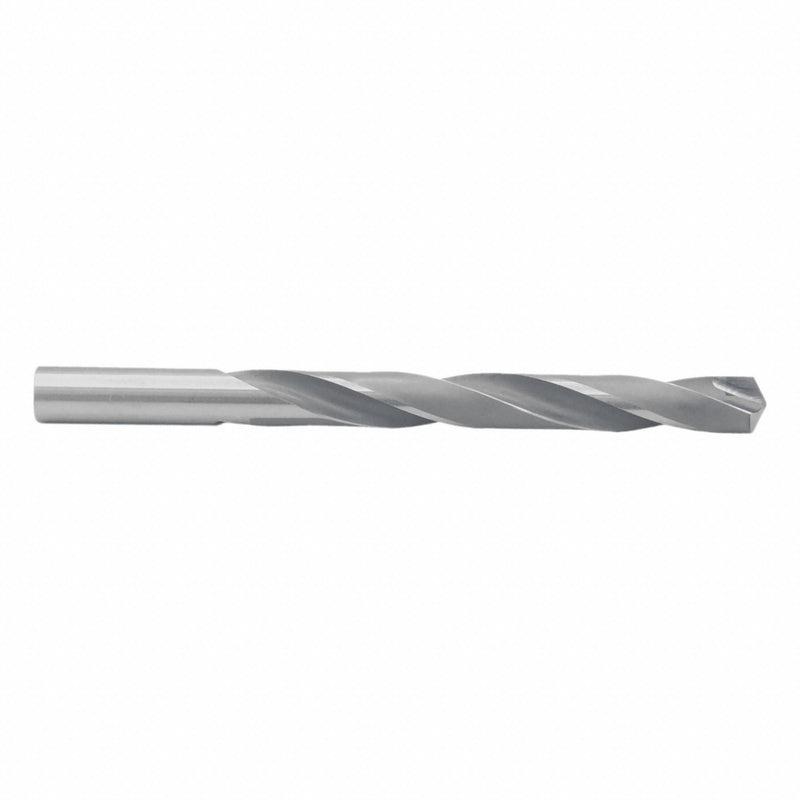

Izar 85869 Jobber Length Drill Bit, 11/64", 135° Split Point, Carbide Tipped
Original price
$16.67
-
Original price
$16.67
Original price
$16.67
$16.67
-
$16.67
Current price
$16.67
Jobber Length Drill Bit, Drill Bit Size 11/64 in, Drill Bit Point Angle 135 Degrees , Carbide Tipped, Bright (Uncoated), Decimal Equivalent 0.1718, Fractional Inch, Drill Bit Point Type Split Point, Non-Coolant Through
| Overall Length | 3 1/2 in |
|---|---|
| Drill Bit Size | 11/64 in |
| Shank Dia. | 11/64 in |
| Maximum Drilling Depth | 2 5/16 in |
| Flute Length | 2 5/16 in |
| Depth:Dia. Ratio | 3xD |
| Drill Length Class | Jobber-Length |
| Drill Diameter Tolerance | H8 |
| Wire Rope Length | 3 1/2 in |
| Length | 3 1/2 in |
| Drill Bit Point Angle | 135 Degrees |
| Number of Flutes | 2 |
| Material - Machining | Carbide Tipped |
| Cutting Direction | Right Hand |
| Finish - Machining | Bright (Uncoated) |
| Shank Type - Machining | Straight |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium |
| List Number | 0910 |
| Coolant Fed | Non-Coolant Through |
| Spiral Direction | Right Hand |
| Decimal Equivalent | 0.1718 |
| Flute Type | Spiral |
| Measurement System | Fractional Inch |
| Drill Bit Point Type | Split Point |
| Standards | Not Rated |
| Primary Material Application ISO Code | K, M, P |
| Material Grade - Machining | General Purpose |
| Secondary Material Application ISO Code | K, M, P |
| Helix Angle - Minimum | 27 Degrees |
| Helix Angle - Maximum | 30 Degrees |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Nickel, Stainless Steel, Steel, Titanium |
| Country of Origin | Spain (subject to change) |
