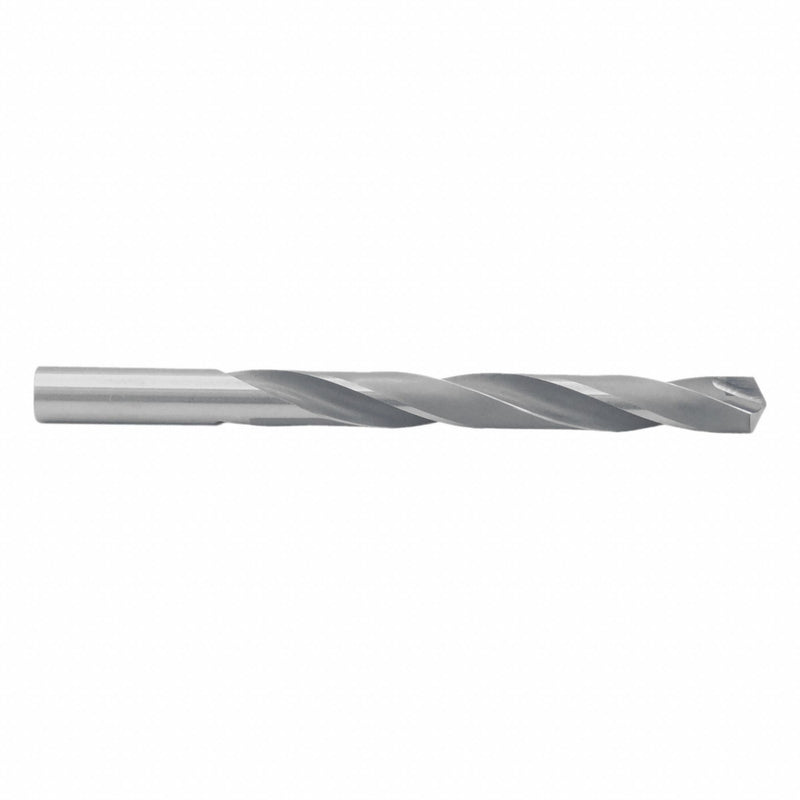

Izar 85871 Jobber Length Drill Bit, 13/64", 135° Split Point, Carbide Tipped

Izar 85871 Jobber Length Drill Bit, 13/64", 135° Split Point, Carbide Tipped

$20.13 - $20.13
$20.13
$20.13 - $20.13
$20.13

Jobber Length Drill Bit, Drill Bit Size 13/64 in, Drill Bit Point Angle 135 Degrees , Carbide Tipped, Bright (Uncoated), Decimal Equivalent 0.2031, Fractional Inch, Drill Bit Point Type Split Point, Non-Coolant Through

Overall Length 3 3/4 in
Drill Bit Size 13/64 in
Shank Dia. 13/64 in
Maximum Drilling Depth 2 1/2 in
Depth:Dia. Ratio 3xD
Drill Length Class Jobber-Length
Flute Length 2 1/2 in
Drill Diameter Tolerance H8
Wire Rope Length 3 3/4 in
Length 3 3/4 in
Drill Bit Point Angle 135 Degrees
Number of Flutes 2
Material - Machining Carbide Tipped
Cutting Direction Right Hand
Finish - Machining Bright (Uncoated)
Shank Type - Machining Straight
Decimal Equivalent 0.2031
List Number 0910
Coolant Fed Non-Coolant Through
Measurement System Fractional Inch
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium
Flute Type Spiral
Standards Not Rated
Drill Bit Point Type Split Point
Spiral Direction Right Hand
Primary Material Application ISO Code K, M, P
Material Grade - Machining General Purpose
Secondary Material Application ISO Code K, M, P
Helix Angle - Maximum 30 Degrees
Helix Angle - Minimum 27 Degrees
Secondary Material Application Aluminum, Brass, Bronze, Composite, Copper, Nickel, Stainless Steel, Steel, Titanium
Country of Origin Spain (subject to change)
