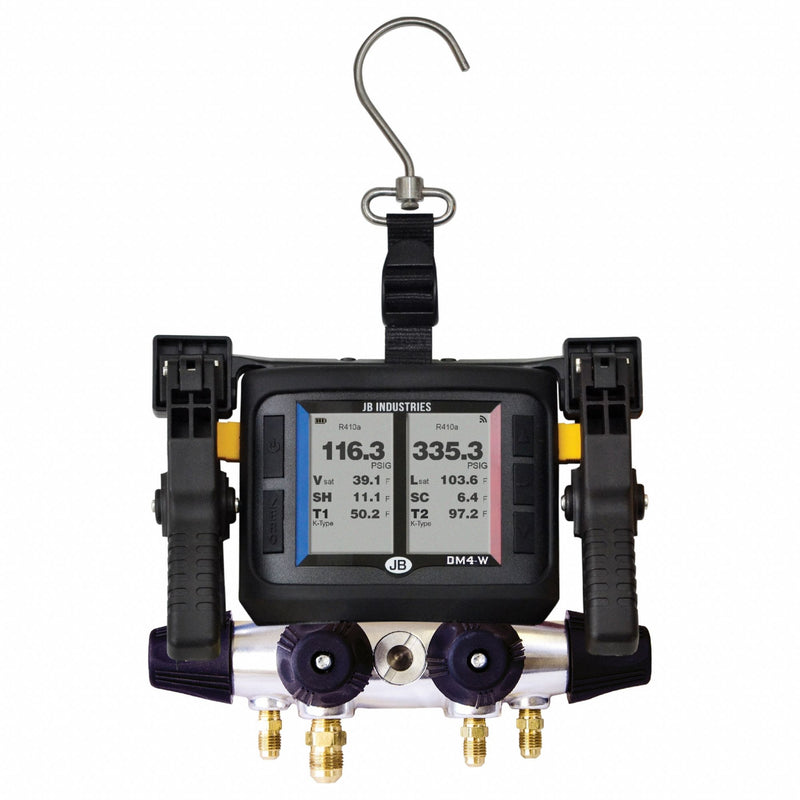

JB Industries DM4-ZW Manifold Gauge Kit, 4 Valves, 4 Hoses, Series CLIMATE, 3 in Gauge, JB GO/JB GO V2
UPC: 684520323261 | Harmonization / Schedule B : 9026.20.0000
Country of Origin: China | Shipping Weight: 14.2 lbs
Original price
$966.53
-
Original price
$966.53
Original price
$966.53
$966.53
-
$966.53
Current price
$966.53
Manifold Gauge Kit, Number of Valves 4
| Number of Valves | 4 |
|---|---|
| Refrigerant Compatibility | R-11, R-113, R-114, R-12, R-123, R-1234yf, R-1234ze, R-124, R-125, R-13, R-134A, R-22, R-227EA, R-23, R-290, R-32, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407C, R-407F, R-408A, R-409A, R-410A, R-411A, R-413A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-435A, R-437A, R-438A/MO99, R-448A, R-449A, R-458A, R-500, R-502, R-503, R-507A, R-508B, R-600, R-600A, R-718, R-744 |
| Number of Hoses | 4 |
| Includes | Carrying Case, Hanging Hook, K-Type Temperature Clamps |
| Material | Aluminum, Stainless Steel |
| Features | 1 Year Warranty, Calculates Superheat, Subcooling, Vapor and Liquid Saturation, Convenient Strap with Hanging Hook, Measures High Side and Low Side Pressure (psi and kPa) and Temperature ( Degrees F and Degrees C), Protective Boot and Water Resistant Design, Simple, Easy-to-Navigate Menu with Transflective Display for Easy Reading in Direct Sunlight, Soft Grip Rubber Handwheels Reduce Turning to Open/Close, Universal K-Type Clamp Thermocouples, Wirelessly Connects to Smart Devices with JB GO App |
| Pressure Resolution | 0.1 psi |
| Vacuum Port Connection Gender | Male |
| Gauge Type | High Side/Low Side |
| Includes Sightglass | Sightglass Included |
| Low Side Display Pressure - Maximum | 1,000 psi |
| Temperature Resolution | 0.1 Degrees F |
| High Side Display Pressure - Maximum | 1,000 psi |
| A2L Compatibility | A2L Compatible |
| Power Source | Battery |
| Manifold Port Connection Type | SAE |
| Display Illumination | Backlit |
| Response Time | 1 sec |
| Includes Vacuum Port | Vacuum Port Included |
| Number of Batteries | 3 |
| Body Material | Aluminum |
| Battery Type | AA |
| Pressure Units Measured | Pa, psi |
| Includes Batteries | Batteries Included |
| For Refrigerant Type | See full list of For Refrigerant Type R-11,R-113,R-114,R-12,R-123,R-1234YF,R-1234ZE,R-124,R-125,R-13,R-134A,R-143A,R-152A,R-22,R-227EA,R-23,R-245FA,R-290,R-30,R-32,R-401A,R-401B,R-402A,R-402B,R-403B,R-404A,R-406A,R-407A,R-407B,R-407C,R-407D,R-407E,R-407F,R-407H,R-408A,R-409A,R-409B,R-410A,R-410B,R-411A,R-411B,R-412A,R-413A,R-414A,R-414B,R-415A,R-415B,R-416A,R-417A,R-417C,R-418A,R-419A,R-420A,R-421A,R-421B,R-422A,R-422B,R-422C,R-422D,R-423A,R-424A,R-425A,R-426A,R-427A,R-428A,R-429A,R-430A,R-431A,R-432A,R-433A,R-434A,R-435A,R-436B,R-437A,R-438A,R-441A,R-442A,R-443A,R-444A,R-448A,R-449A,R-450A,R-452A,R-453A,R-454B,R-458A,R-500,R-501,R-502,R-503,R-504,R-507A,R-508A,R-508B,R-509A,R-510A,R-512A,R-513A,R-600,R-600A,R-718,R-744 |
| Vacuum Port Connection Type | SAE |
| Manifold Port Connection Thread Direction | Right-Hand |
| Warranty | 1 yr |
| App Compatibility | JB GO, JB GO V2 |
| High Side Display Pressure - Minimum | 0 psi |
| Temperature Units Measured | Degrees F |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Display Type | Digital |
| Manifold Port Connection Gender | Male |
| Calibration Certificate Type | Not Certified |
| Includes Gauge Boots | Boot Not Included |
| Hose Connection Thread Direction | Right-Hand |
| Series | CLIMATE |
| Low Side Display Pressure - Minimum | 30 in Hg |
| Country of Origin | China |
