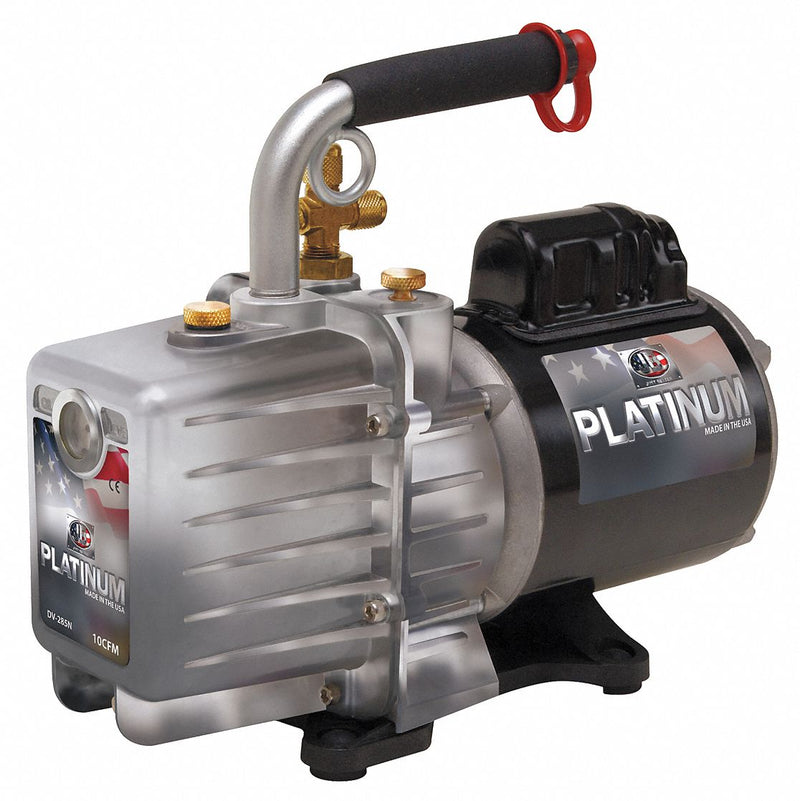

JB Industries DV-285N Vacuum Pump, 10 cfm, 15 micron Ultimate Vacuum, 120V AC, A2L Compatible, Male, Flare
UPC: 684520102958 | Harmonization / Schedule B : 8414.10.0000
Country of Origin: United States | Shipping Weight: 35.3 lbs
Original price
$1,303.89
-
Original price
$1,303.89
Original price
$1,303.89
$1,303.89
-
$1,303.89
Current price
$1,303.89
Vacuum Pump, 10 cfm Displacement, 1/2 hp HP, Inlet Port Size 1/4 in and 1/2 in Flare, 3/8 in, Voltage 120V AC, Amps AC 7.7 A, 60 Hz Hz, 15 micron End Vacuum, Overall Length 14 in, Overall Height 9.1 in, Overall Width 18 in, Weight 34 lb, Oil Capacity 21 oz, Cord 6 ft, Body Material Aluminum, Includes Large Sight Glass for Improved Oil Viewing
| Inlet Port Size | 1/4 in and 1/2 in Flare, 3/8 in |
|---|---|
| Overall Length | 14 in |
| Overall Width | 18 in |
| Overall Height | 9.1 in |
| Height | 12 in |
| Width | 5 5/8 in |
| Inlet 1 Port Connection Size | 1/2 in |
| Inlet 3 Port Connection Size | 3/8 in |
| Inlet 2 Port Connection Size | 1/4 in |
| Cord Length | 6 ft |
| Wire Rope Length | 14 in |
| Length | 14 in |
| MFR # | DV-285N |
| Zoro # | G2802511 |
| UPC # | 684520102958 |
| Country of Origin | United States |
| HP | 1/2 hp |
| Voltage | 120V AC |
| Weight | 34 lb |
| Amps AC | 7.7 A |
| Displacement | 10 cfm |
| End Vacuum | 15 micron |
| Cord | 6 ft |
| Body Material | Aluminum |
| Includes | Large Sight Glass for Improved Oil Viewing |
| Oil Capacity | 21 oz |
| Hz | 60 Hz |
| Motor Type | Dual Voltage |
| Application | For Air Conditioning and Refrigeration System Evacuation |
| Standards | CE Certified, CSA Certified, EMC, UL Listed |
| Inlet 3 Port Connection Type | Flare |
| Motor Speed | 1,725 RPM |
| Inlet 1 Port Connection Gender | Male |
| Product Type | Vacuum Pump |
| Inlet 2 Port Connection Thread Direction | Right-Hand |
| Drain Port Connection Thread Direction | Right-Hand |
| Inlet 2 Port Connection Type | Flare |
| Includes Oil Mist Filter | Oil Mist Filter Not Included |
| Calibration Certificate Type | Not Certified |
| Inlet 3 Port Connection Thread Direction | Right-Hand |
| Series | PLATINUM |
| Frequency | 60 Hz |
| Includes Sightglass | Sightglass Included |
| Number of Inlet Ports | 3 |
| Inlet 1 Port Connection Type | Flare |
| Horsepower | 1/2 hp |
| Reservoir Port Connection Thread Direction | Right-Hand |
| Number of Stages | Two-Stage |
| Warranty | 2 yr |
| Plug Configuration | 5-15P |
| Power Source | Plug-In |
| Includes Isolation Valve | Isolation Valve Included |
| Includes Vacuum Gauge | Gauge Not Included |
| Includes Gas Ballast | Gas Ballast Included |
| Mobility | Handle |
| Ultimate Vacuum | 15 micron |
| Current | 7.7 A |
| Includes Hoist Clip | Hoist Clip Included |
| Inlet 1 Port Connection Thread Direction | Right-Hand |
| Drive Type | Direct Drive |
| Inlet 3 Port Connection Gender | Male |
| A2L Compatibility | A2L Compatible |
| Power Source - TS Only | Plug-In |
| Power Source - old | Plug-In |
| Country of Origin | USA (subject to change) |
