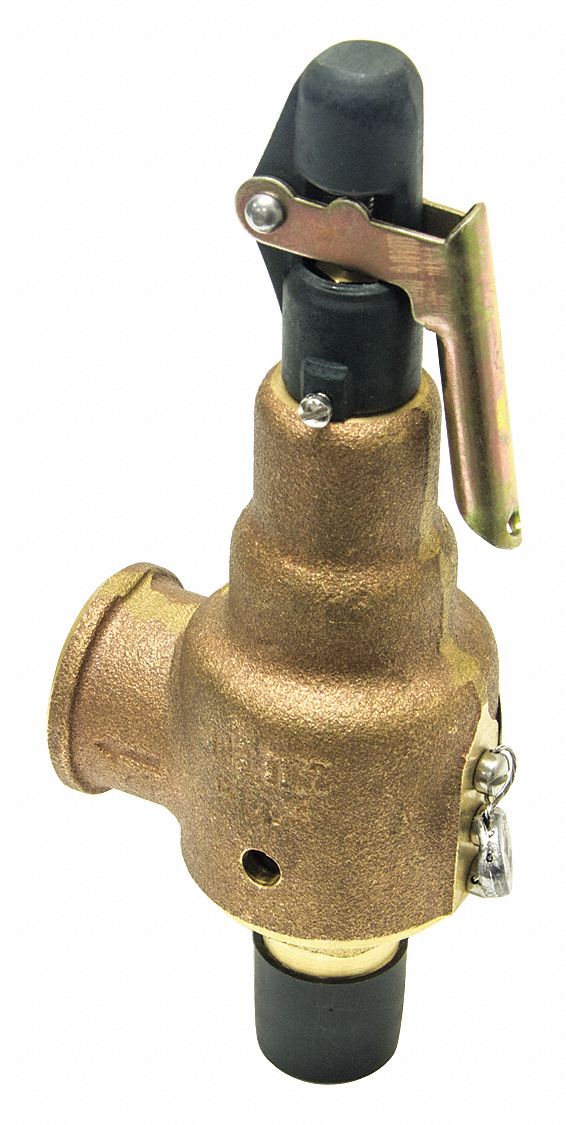

Kunkle Valve 6010DCM01AKM0150 Safety Relief Valve, 1/2 in MNPT x 3/4 in FNPT, 150 psi, Bronze, ASME Section VIII
Original price
$418.96
-
Original price
$418.96
Original price
$418.96
$418.96
-
$418.96
Current price
$418.96
Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1/2 in, Outlet Size 3/4 in, Factory Set Pressure 150 psi, Disc Material Brass, Overall Height 6 1/2 in, Overall Length 1 5/8 in, Seat Material Metal, Spring Material Stainless Steel. Application: Air/Gas Compressors, Intercoolers and Aftercoolers, Pressure Reducing Stations, Pressure Vessels-Containing Steam, Steam Boilers and Generators, Tanks, Receivers, Sterilizers and Autoclaves.
| Body Material | Bronze |
|---|---|
| Outlet Type | FNPT |
| Inlet Type | MNPT |
| Factory Set Pressure | 150 psi |
| Compliance | Section VIII Air/Gas |
| Spring Material | Stainless Steel |
| Seat Material | Metal |
| Standards | ASME Code UV |
| Test Lever | Test Lever Included |
| Disc Material | Brass |
| Temp. Range | -60 Degrees to 406 Degrees F |
| Product Type | Safety Relief Valve |
| ASME Section Code | Section VIII, Section XIII |
| Inlet Connection Gender | Male |
| Operating Temperature - Minimum | -60 Degrees F |
| Operating Pressure - Minimum | 18 psi |
| Outlet Connection Gender | Female |
| Operating Pressure - Maximum | 314 psi |
| Inlet Connection Type | NPT |
| For Media | Air, Gas |
| Outlet Connection Type | NPT |
| Operating Temperature - Maximum | 425 Degrees F |
| Country of Origin | United States |
