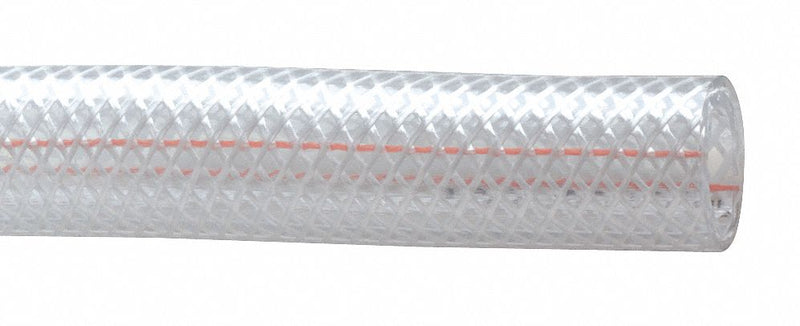

Kuriyama K3150-06 Clearbraid PVC Tubing, 3/8 in ID, 19/32 in OD, 100 ft, Clear
UPC: | Harmonization / Schedule B : 3917.39.0020
Country of Origin: Germany | Shipping Weight: 8.95 lbs
Original price
$108.71
-
Original price
$108.71
Original price
$108.71
$108.71
-
$108.71
Current price
$108.71
Tubing, Application Air, Beverage, Food, Water, Color Clear, Food Application Food and Beverage, Hardness Shore A 73, Inside Diameter 3/8 in, Jacket Material No Jacket, Material PVC, Material Trade Name Clearbraid, Maximum Operating Pressure 225 psi @ 70 Degrees F, Maximum Operating Temperature 150 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 19/32 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Resistance Properties Chemical Resistant
| Tube Material | PVC with Spiraled Polyester Yarn |
|---|---|
| Tube Hardness | Shore A: 73 |
| Max. Pressure | 225 psi @ 70 Degrees F |
| Tube Color | Clear |
| SAE or Metric | SAE |
| Application | Air, Beverage, Food, Water |
| Standards | 3-A, FDA, USDA, NSF, NSF 51, RoHS Compliant, UL, USP Class VI |
| Tensile Strength | 2,200 psi |
| Flexibility | Flexible |
| Vacuum Rating | 28 in Hg |
| Temp. Range | 25 Degrees to 150 Degrees F |
| Material | PVC |
| Color | Clear |
| Features | Non Conductive, Non Marking, Self-Extinguishing, Silicone-Free |
| Food Application | Food and Beverage |
| Maximum Vacuum Pressure | 28 in Hg |
| Industry Application | Liquid Food Products, Packaging Machines, Powdered Food Products |
| Does Not Contain | Phthalates |
| Vacuum Rated | Vacuum Rated |
| Reinforcement | Polyester Braid with Longitudinal Yarn |
| For Fluid Type | Beverages, Deionized Water |
| Jacket Material | No Jacket |
| Peristaltic Pump Compatible | No |
| Resistance Properties | Chemical Resistant |
| Fitting Compatibility | Barbed |
| Clarity | Clear |
| Flow Application | Air and Water Lines, Air Breathing Lines, Food and Beverage, Pneumatic Lines, Potable Water Transfer |
| Stripe Color | No Stripe |
| Hardness | Shore A 73 |
| Autoclavable | No |
| System of Measurement | Inch |
| Material Trade Name | Clearbraid |
| Tube Form | Coil |
| Maximum Operating Pressure | 225 psi @ 70 Degrees F |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature | 25 Degrees F |
| Country of Origin | Germany |
