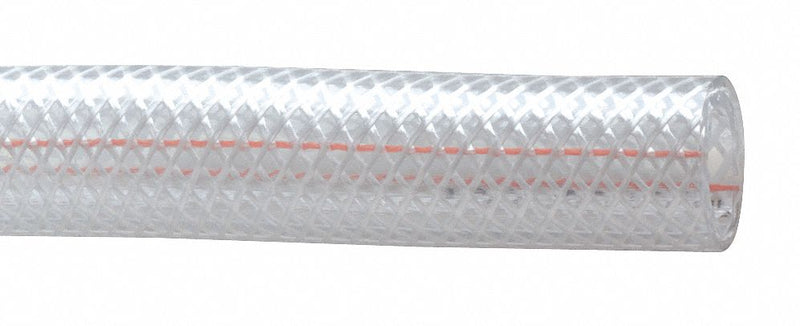

Kuriyama K3150-24 Clearbraid PVC Tubing, 1 1/2 in ID, 1 15/16 in OD, 50 ft, Clear
UPC: | Harmonization / Schedule B : 3917.39.0020
Country of Origin: United States | Shipping Weight: 66.0 lbs
Original price
$897.31
-
Original price
$897.31
Original price
$897.31
$897.31
-
$897.31
Current price
$897.31
Tubing, Application Air, Beverage, Food, Water, Color Clear, Food Application Food and Beverage, Hardness Shore A 73, Inside Diameter 1 1/2 in, Jacket Material No Jacket, Material PVC, Material Trade Name Clearbraid, Maximum Operating Pressure 100 psi @ 70 Degrees F, Maximum Operating Temperature 150 Degrees F, Maximum Vacuum Pressure 8 in Hg, Outside Diameter 1 15/16 in, Overall Length 50 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Resistance Properties Chemical Resistant
| Tube Material | PVC |
|---|---|
| Tube Hardness | Shore A: 73 |
| Max. Pressure | 100 psi @ 70 Degrees F |
| Tube Color | Clear |
| Tensile Strength | 2,175 psi |
| Vacuum Rating | 8 in Hg |
| Standards | 3-A, FDA, USDA, NSF, NSF 51, RoHS Compliant, UL, USP Class VI |
| Application | Air, Beverage, Food, Water |
| SAE or Metric | SAE |
| Flexibility | Flexible |
| Temp. Range | 25 Degrees to 150 Degrees F |
| Material | PVC |
| Features | Non Conductive, Non Marking, Self-Extinguishing, Silicone-Free |
| Color | Clear |
| Food Application | Food and Beverage |
| For Fluid Type | Beverages, Deionized Water |
| Maximum Operating Pressure | 100 psi @ 70 Degrees F |
| Minimum Operating Temperature | 25 Degrees F |
| Stripe Color | No Stripe |
| Maximum Operating Temperature | 150 Degrees F |
| Jacket Material | No Jacket |
| Does Not Contain | Phthalates |
| Resistance Properties | Chemical Resistant |
| Industry Application | Liquid Food Products, Packaging Machines, Powdered Food Products |
| Flow Application | Air and Water Lines, Air Breathing Lines, Food and Beverage, Pneumatic Lines, Potable Water Transfer |
| Peristaltic Pump Compatible | No |
| Reinforcement | Polyester Braid with Longitudinal Yarn |
| Maximum Vacuum Pressure | 8 in Hg |
| Clarity | Clear |
| Fitting Compatibility | Barbed |
| Vacuum Rated | Vacuum Rated |
| Hardness | Shore A 73 |
| Material Trade Name | Clearbraid |
| Autoclavable | No |
| Tube Form | Coil |
| System of Measurement | Inch |
| Country of Origin | United States |
