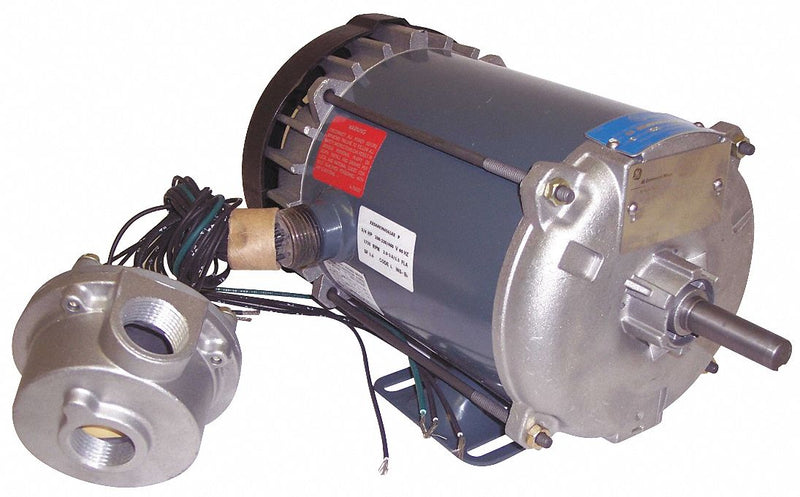

Leeson 056C17G15523 Hazardous Location Motor, 1/2 HP, 1725 RPM, 115/208-230V, Single Phase, Capacitor-Start, TEFC, Frame 56, Class I/II Div I
Original price
$767.92
-
Original price
$767.92
Original price
$767.92
$767.92
-
$767.92
Current price
$767.92
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
| Motor Design | Capacitor-Start |
|---|---|
| Phase | Single |
| HP | 1/2 hp |
| RPM Range | 1,701-1,800 |
| Voltage | 115/208-230V AC |
| Frame | 56 |
| Hazardous Location Class | Class I, Class II |
| Motor Thermal Protection | Auto |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Standards | CSA Certified (LR47504), UL Listed (E12044) |
| Motor Application | Hazardous Location |
| Motor Shaft Rotation | CW/CCW |
| Temp. Code | T3B |
| Motor Service Factor | 1 |
| Duty | Continuous |
| Motor Frame Material | Steel |
| Motor Bearings | Ball |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Full Load Amps | 8.8/4.2-4.4 A |
| Hz | 60 Hz |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Design | Keyed |
| Frame Material | Rolled steel |
| Ins. Class | B |
| Includes | Conduit Box, Leads through 1 in NPT Nipple |
| Nameplate RPM | 1,725 RPM |
| Nominal Efficiency | 85.5 % |
| Duty Cycle | Continuous |
| Usable @ 200V | Not Usable at 200V |
| Weight | 28.93 lb |
| Usable @ 208V | Usable at 208V |
| No. of Speeds | 1 |
| Motor Mounting Position | Horizontal |
| Conduit Box Location | Exterior |
| Hazardous Location Division | Division I |
| Hazardous Location Group | Group C, Group D, Group E, Group F, Group G |
| Country of Origin | United States |
