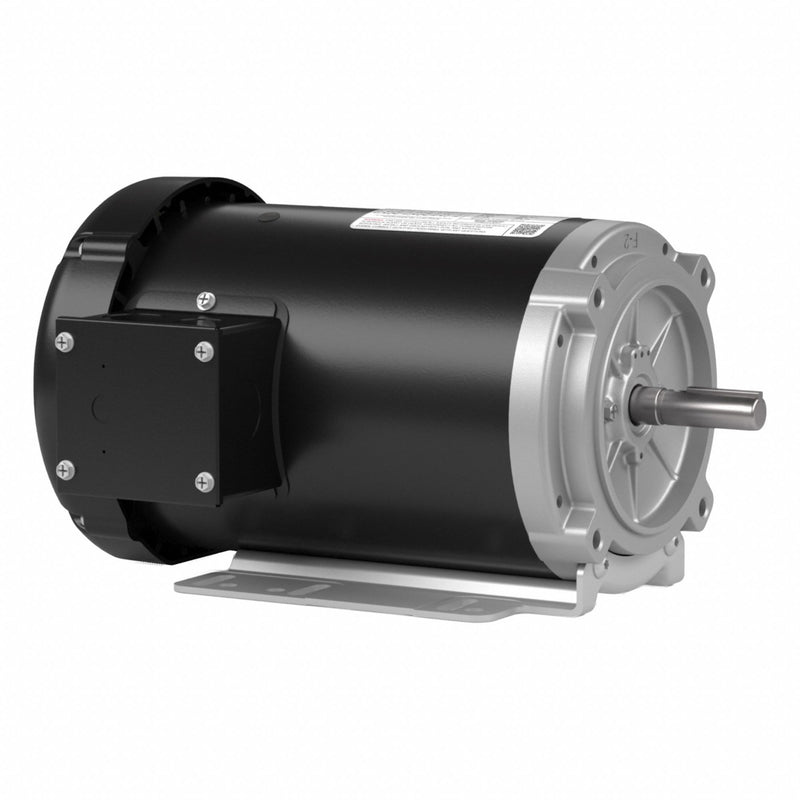

Leeson 056T17F15951 General Purpose Motors, C-Face/Universal Mount, Totally Enclosed Fan Cooled, 1 hp, 1,725 RPM
Original price
$857.76
-
Original price
$857.76
Original price
$857.76
$857.76
-
$857.76
Current price
$857.76
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,725, Frame 56HC, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 3.1-3.1/1.6 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 85.9 Percent, 0-1,725, CE, CSA, UL
| Overall Length | 13 1/16 in |
|---|---|
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Frame Size | 56HC |
| Shaft Diameter | 5/8 in |
| Wire Rope Length | 13 1/16 in |
| Length | 13 1/16 in |
| HP | 1 |
| Nameplate RPM | 1,725 |
| Voltage | 208-230/460V |
| Motor Mounting Type | Universal |
| Full Load Amps | 3.1-3.1/1.6 A |
| Frame | 56HC |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 0-1,725 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Shaft Rotation | CCW |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 85.9 % |
| Standards | CE, CSA, UL |
| Inverter Rated | Yes |
| Duty Cycle | Continuous |
| Motor Thermal Protection | None |
| NEMA Design | B |
| Usable @ 208V | Usable at 208V |
| Weight | 42 lb |
| Inverter Rating | Inverter Rated |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Frequency | 60 Hz |
| Insulation Class | F |
| Shaft Design | Keyed |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| NEMA Design Class | B |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Mounting Position | Horizontal |
| Frame Material | Steel |
| Efficiency Rating | Standard Efficiency (IE1) |
| Application | General Purpose |
| Ambient Temperature - Maximum | 40 Degrees C |
| Product Type | General Purpose Motor |
| Full Load Current @ 60 Hz | 3.1-3.1/1.6 A |
| Country of Origin | Mexico (subject to change) |
