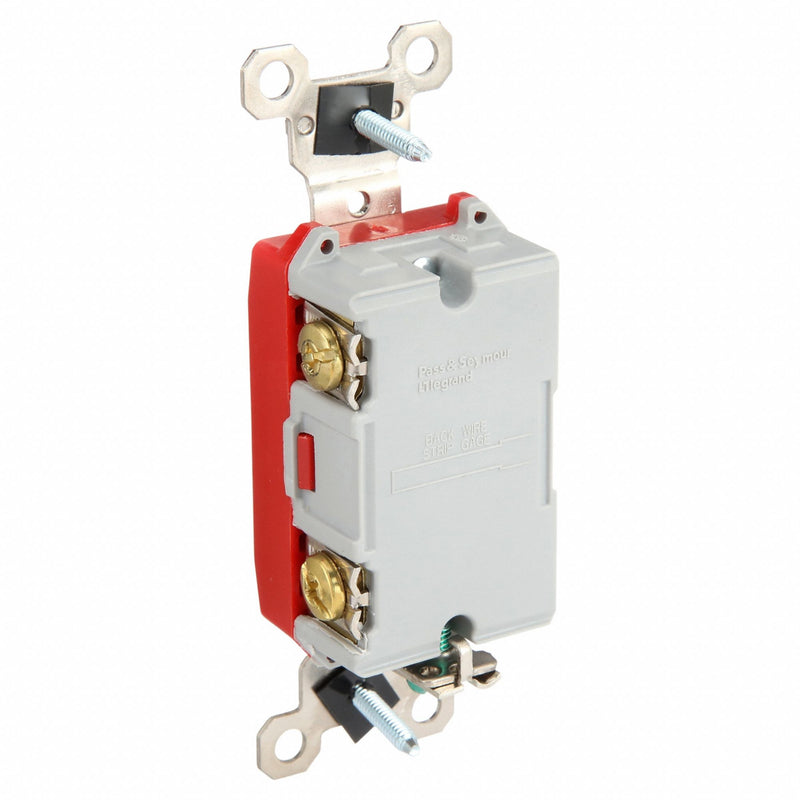

Legrand PS20AC1I Wall Switch, Toggle Switch, Single Pole, Maintained, Ivory, 120V AC, 20 A
UPC: 785007196627 | Harmonization / Schedule B : 8536.50.9040
Country of Origin: Mexico | Shipping Weight: 0.17 lbs
Original price
$10.02
-
Original price
$10.02
Original price
$10.02
$10.02
-
$10.02
Current price
$10.02
Wall Switch, Color Ivory, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant
| Switch Type | Single Pole |
|---|---|
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back/Side |
| Application Environment | Industrial |
| Description/Special Features | Nylon Toggle |
| Antimicrobial | No |
| Voltage | 120.0 V |
| Standards | cULus Listed, UL 498/20, WD-1, WD-6 |
| Switch Depth | 1.1 in |
| Switch Material | Thermoplastic |
| Voltage Rating | 120V AC |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 115 Degrees C |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant |
| Market | Industrial |
| Housing Material | Thermoplastic |
| Minimum Operating Temperature | -40 Degrees F |
| Wire Connection Type | Screw Terminals |
| Contact Material | Silver Alloy |
| Horsepower Rating | 1 hp |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| Current Rating | 20 A |
| Switch Height | 2.2 in |
| Overall Width | 1.3 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Features | Chemical Resistant |
| Strap Material | Nickel-Plated Brass |
| Number Of Poles | Single Pole |
| Contact Rating | 20Amp, 120/277Vac |
| Standard | UL 498/20 |
| Special Features | Back & side wire, locking support, heavy duty toggle |
| Action | Single pole |
| Actuator | Toggle |
| Application Sector | Industrial |
| Amperage | 20.0 A |
| Nightlight | No |
| Number of Switches | 1 |
| IP Rating | Not Applicable |
| NEMA Enclosure Rating | Not Applicable |
| Locking Style | Not Applicable |
| Illuminated | No |
| Package Quantity | 1 |
| Country of Origin | Mexico |
