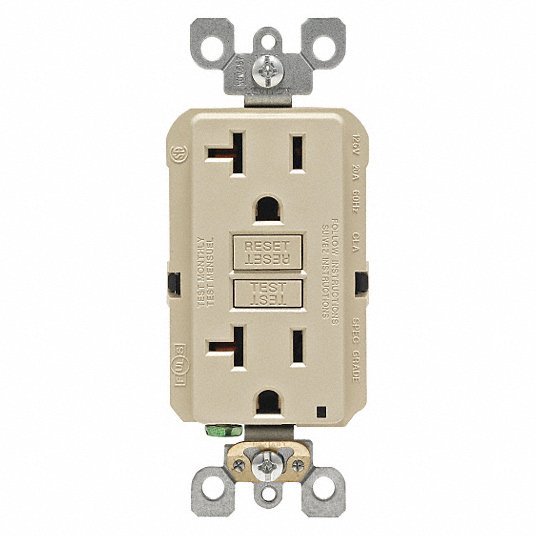

Leviton GFNT2-I GFI Receptacle Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals, Std Resist PK10
Original price
$345.90
-
Original price
$345.90
Original price
$345.90
$345.90
-
$345.90
Current price
$345.90
GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380. Pack of 10
| Number of Wires | 3 |
| HP | 1 hp |
| Amps - Plugs and Receptacles | 20 A |
| Standards | CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380 |
| Mounting Type - Plugs and Receptacles | Flush |
| Color | Ivory |
| Tamper Resistant | No |
| Voltage - Plugs and Receptacles | 125V |
| Wiring Method - Plugs and Receptacles | Back and Side |
| Voltage | 125 VAC |
| Type | Standard Duplex |
| Surge Suppression | Yes |
| Color - Plugs and Receptacles | Ivory |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Item | GFI Receptacle |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Application Environment | Commercial |
| Power Indicator | Yes |
| Number of Poles | 2 |
| Special Features | Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip |
| Weather Resistant - Plugs and Receptacles | No |
| Wiring Method | Back, Side |
| NEMA Configuration | 5-20 |
| Self-Testing | Yes |
| Includes | Faceplate, Wallplate |
| Mount Type | Flush |
| Minimum Operating Temperature | -35 Degrees C |
| Surge Protection | Yes |
| Grade | Federal Specification |
| Phase | Single |
| GFCI | Yes |
| Additional Electrical Protection | GFCI, Surge Protection |
| Contact Material | Brass |
| Wire Connection Types | Screw Terminals |
| Wire Connection Type | Screw Terminals |
| Key Resistance Properties | Standard Resistance |
| Receptacle Type | Decorator Duplex |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Voltage Rating | 125V AC |
| NEMA Receptacle Configuration | 5-20R |
| Market | Commercial, Residential |
| Includes Mounting Hardware | Yes |
| Additional Electrical Protections | GFCI & Surge Protection |
| Current Rating | 20 A |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Number of Outlets | 2 |
| Cover Type | No Cover |
| Maximum Operating Temperature | 66 Degrees C |
| Housing Material | Polycarbonate |
| Hub Type | Feed Through |
| Visual Indicator Lights | Power Connected |
| Self Testing | Yes |
| Housing Color | Ivory |
| Primary Resistance Properties | 20 A |
| Polarized | Yes |
| CSA C22.2 No. 42 | Yes |
| Feature | Self-Test |
| At Rated Voltage | 1 HP |
| UL498 | Yes |
| NEMA | 5-20R |
| Strap Material | Galvanized Steel |
| Pole | 2 |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Fed Spec WC-596 | Yes |
| ANSI | C-73 |
| Line Contacts | Brass Double Wipe .031 Thick |
| Terminal Screws | Plated Steel |
| Operating Temperature | -35C to +66C |
| Face Material | Thermoplastic |
| Wallplate | Included |
| Torque Range | 14-18 in.-lbs |
| Amperage | 20 A |
| Yoke | Zinc-Plated Steel |
| Trip Level | Class A, 5mA plus or minus 1mA |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Standards and Certifications | UL/CSA, NEMA WD6 |
| Grounding Screw | Plated Steel |
| Terminal Accom. | 14-10 AWG |
| Body Material | Polycarbonate |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back & Side |
| Clamps | Brass |
| Wire | 3 |
| Short Circuit Current Rating | 10KA |
| Package Quantity | 1 |
