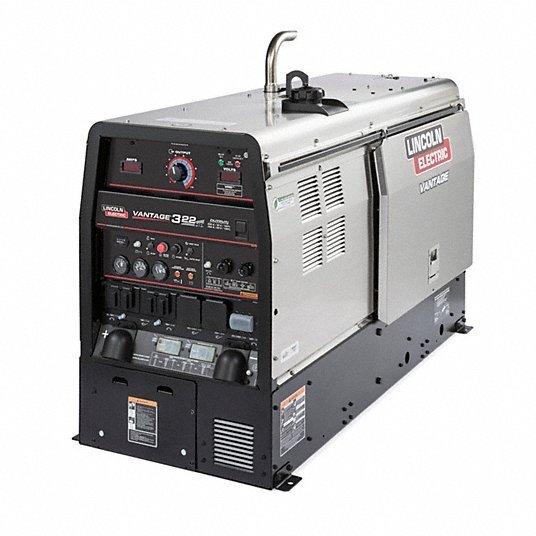

Lincoln K2409-5 Engine-Driven Welder, Vantage 322 Series, Electric Start, 12,500 W Peak
Original price
$27,200.99
-
Original price
$27,200.99
Original price
$27,200.99
$27,200.99
-
$27,200.99
Current price
$27,200.99
| /
Engine-Driven Welder, Color Stainless Steel, Generator Fuel Type Diesel, Phase Single-/Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, TIG Welding Maximum Output Current 300 A, TIG Welding Minimum Output Current 10 A, TIG Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, Remote Connection Type 14-Pin (Lincoln), 6-Pin (Lincoln), Welding Mode CC/CV
| Item |
Engine-Driven Welder |
| Series |
Vantage 322 |
| Start Type |
Electric |
| Continuous Auxiliary Power |
11,000 W |
| Peak Auxiliary Power |
12,500 W |
| Engine Brand |
Kubota |
| Model |
K2409-5 |
| Horsepower |
22 hp |
| Generator Fuel Type |
Diesel |
| Engine Model |
Kubota V1505 |
| Oil Capacity |
6 3/8 qt |
| Stick Welding Maximum Output Current |
300 A |
| Stick Welding Output @ Duty Cycle |
280 A @ 32 V, 100% |
| Stick Welding Minimum Output Current |
10 A |
| Remote Connection Type |
14-Pin (Lincoln), 6-Pin (Lincoln) |
| TIG Welding Output @ Duty Cycle |
280 A @ 32 V, 100% |
| Weight |
1,035 lb |
| Open Circuit Voltage |
60 V DC |
| Circuit Breaker |
Yes |
| TIG Arc Start Feature |
Lift Arc Start |
| TIG Welding Minimum Output Current |
10 A |
| Welding Processes |
Air Carbon Arc Cutting & Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| Generator Outlets |
14-50R 120/240V Receptacle, 15-50R 240V Receptacle, 5-20R 120V GFCI Receptacle (2), 5-20R 120V Receptacle (4) |
| TIG Welding Maximum Output Current |
300 A |
| Color |
Stainless Steel |
| Polarity |
DC |
| Phase |
Single-/Three-Phase |
| Fuel Tank Capacity |
20 gal |
| Welding Mode |
CC/CV |
| Rated Output at Duty Cycle (Stick) |
280 A @ 100% |
| Fuel Tank Capacity Range |
10 gal - 20 gal |
| Max. Amperage Range (Stick) |
150 A - 300 A |
| Welder Type |
Base Model |
| Horsepower Range |
15 hp - 30 hp |
| Generator Outlet Type |
14-50R, 15-50R, 5-20R |
| Welder Model Type |
Base Model |
| Process (Merch) |
SMAW, GTAW, GMAW, FCAW, CAC-A |
| Process |
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model |
LINCOLN ELECTRIC - K2409-5 |
| Package Quantity |
1 |
