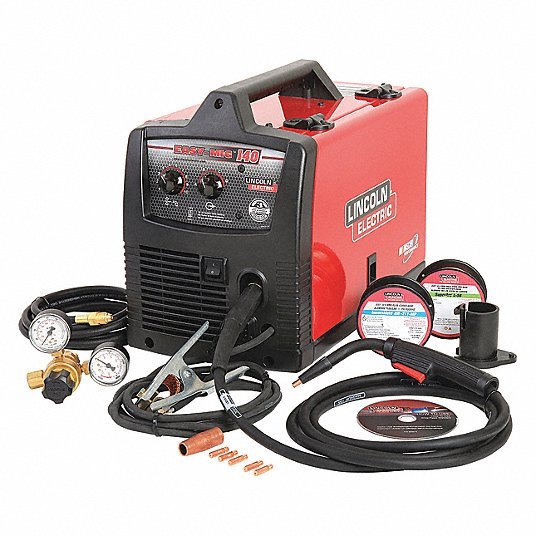

Lincoln K2697-1 MIG Welder, Easy MIG 140, 1, 120V AC, 30 to 140A DC, 20%
Original price
$1,024.10
-
Original price
$1,024.10
Original price
$1,024.10
$1,024.10
-
$1,024.10
Current price
$1,024.10
MIG Welder, Series Easy-MIG 140, Input Voltage 120V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid), Maximum Wire Feed Speed 500 in/min, Model K2697-1, MIG Welding Output @ Duty Cycle 90 A @ 19.5 V, 20 Percent
| Item | MIG Welder |
| Series | Easy MIG 140 |
| Input Voltage | 120V AC |
| Welded Material | Mild Steel, Aluminum, Stainless Steel |
| Mild Steel - Material Thickness | 24 ga to 3/16 in |
| Phase | 1 |
| Welding Processes | Flux Core, MIG |
| Hz | 60 |
| Portability | Handheld Portable |
| Application | For Metal Fabrication, Maintenance and Repair, Farm/Home, Light Industrial |
| Rated Output | 90A @ 19.5V DC |
| Input Amps | 20 |
| Includes | MIG Gun and 10 ft Cable Assembly, Contact Tips, Nozzles, Spindle Adapter, 2 Drive Rolls, Knurled Drive Roll, Wire Guide Set, Gas Regulator, 52 in Hose for CO2 Argon Blend Gases, 2 lb MIG Wire, 1lb Flux Cored Wire, Work Clamp and 10 ft Cable |
| Duty Cycle | 20 % |
| Output Range | 30 to 140A DC |
| Features | Precise Wire Drive, Spool Gun Ready, Tool-less Design, Drive Roll and Nozzle Storage |
| Standards | CSA certified |
| Aluminum - Material Thickness | 22 to 10 ga |
| MIG Welding Output @ Duty Cycle | 90 A @ 19.5 V, 20% |
| Maximum Wire Feed Speed | 500 in/min |
| MIG Welding Minimum Output Current | 30 A |
| MIG Welding Maximum Output Current | 140 A |
| Plug Type | 5-15P |
| For Wire Type | Flux-Cored, Solid |
| For Minimum Material Thickness | 24 ga (Steel) |
| Kit Includes | Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Work Cable with Clamp |
| Minimum Wire Feed Speed | 50 in/min |
| Weight | 50 lb |
| Rated Output at Duty Cycle (MIG) | 90 A @ 20% |
| Welder Kit Type | MIG/Flux-Cored Package |
| Welding Mode | CV |
| Input Frequency | 60 Hz |
| Color | Red |
| Input Voltage (Nominal) | 120V |
| For Maximum Material Thickness | 5/16 in (Steel) |
| For Material Type | Mild Steel, Stainless Steel |
| Max. Amperage Range (MIG) | Less than 150 A |
| Amperage Range | 30 to 140 A |
| Polarity | DC |
| Model | K2697-1 |
| Maximum Amperage Range (MIG) | Less than 150 A |
| Process | Flux-Cored Welding (FCAW), MIG Welding (GMAW) |
| brand-mfr model | LINCOLN ELECTRIC - K2697-1 |
| Package Quantity | 1 |
