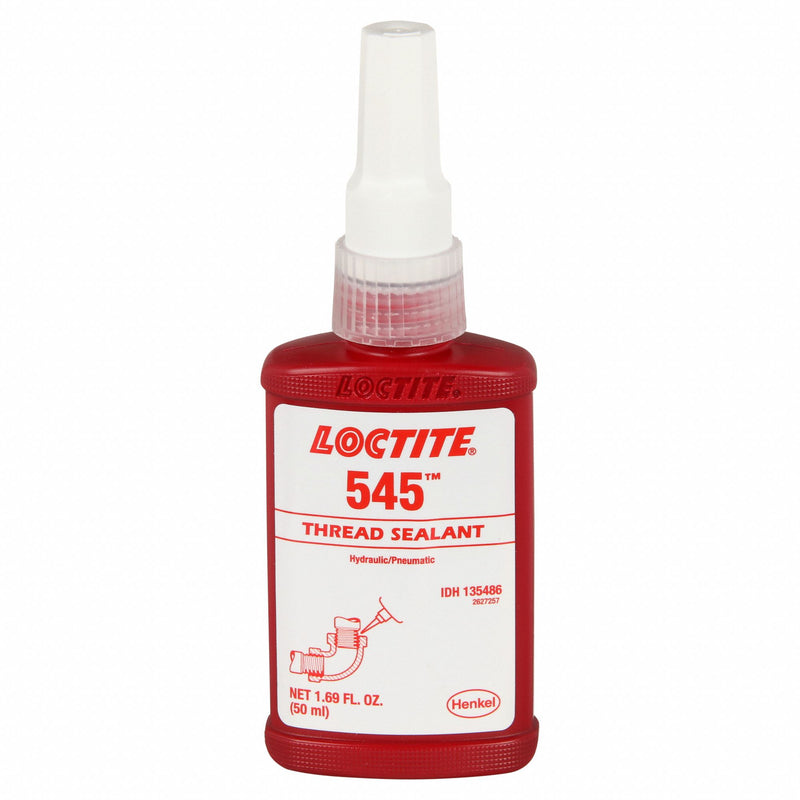

Loctite 135486 Pipe Thread Sealant, 545, 1.7 fl oz, Bottle, Purple
UPC: 079340545311 | Harmonization / Schedule B : 3506.10.5000
Country of Origin: United States | Shipping Weight: 0.15 lbs
Original price
$79.29
-
Original price
$79.29
Original price
$79.29
$79.29
-
$79.29
Current price
$79.29
Pipe Thread Sealant, Cure Type Anaerobic, Series 545, Container Size 1.7 fl oz, Container Type Bottle, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature -65 Degrees F, Maximum Operating Pressure for Liquids 10,000 psi, Color Purple, For Material Type Metal, Specific Sealing Application For Hydraulic Systems, Standards ISO 10964, For Maximum Thread Diameter 3/4 in, Application Method Brush, Chemical Base Methyl Methacrylate, Clean Up Method Loctite Solvent
| Container Size | 1.7 fl oz |
|---|---|
| Size | 50 mL |
| For Maximum Thread Diameter | 3/4 in |
| MFR # | 135486 |
| Zoro # | G3485361 |
| UPC # | 079340545311 |
| Country of Origin | United States |
| Container Type | Bottle |
| Color | Purple |
| Chemical Base | Methyl Methacrylate |
| Series | 545 |
| Product Form | Liquid |
| Resistance Properties | Pressure Resistant |
| Begins to Harden | Not Specified |
| Viscosity | 14,000cP |
| For Use With | Primer 7088, 7649, or 7471 |
| Chemical Type | Methacrylate Ester |
| Flash Point | 200 Degrees F |
| Application Temp. Range | 72 Degrees F |
| Includes | Pneumatic and Hydraulic Fittings |
| Specific Gravity | 1.02 |
| Application | Locks and Seals Hydraulic and Pneumatic Fittings without Fouling the System, Suitable for Fittings Up to 50mm in Diameter |
| Performance Temp. Range | -65 Degrees to 300 Degrees F |
| Gas Pressure Range | 10,000 psi |
| For Material Type | Metal |
| Standards | ISO 10964 |
| Full Cure Time | 1 day |
| Maximum Operating Pressure for Liquids | 10,000 psi |
| Application Method | Brush |
| For Thread Type | Fine Threads |
| Shear Strength | 220 psi |
| Mixing Required | No |
| Minimum Viscosity | 9,000 cps |
| Maximum Viscosity | 20,000 cps |
| Maximum Operating Temperature | 300 Degrees F |
| Clean Up Method | Loctite Solvent |
| Minimum Operating Temperature | -65 Degrees F |
| Specific Sealing Application | For Hydraulic Systems |
| Compatible Primer Series | 7088, 7471, 7649 |
| Storage Requirements | 8 Degrees to 21 Degrees C |
| VOC Content | 19.01 g/L |
| Maximum Application Temperature | 72 Degrees F |
| Cure Type | Anaerobic |
| Characteristics | Lubricity High Lubricity,No Fillers/Particles,Solvent Resistant,Viscosity Medium Viscosity |
| Country of Origin | USA (subject to change) |
