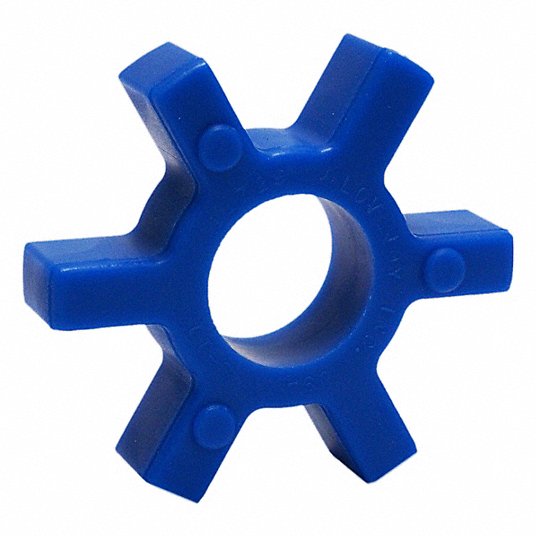

Lovejoy 68514412006 Jaw Coupling Insert L150 Coupling Size, 3 3/4 in Outside Dia, Inch, 3,600 RPM Max Speed

Jaw Coupling Insert, Coupling Size L150, Outside Diameter 3 3/4 in, System of Measurement Inch, Maximum Speed 3,600 RPM, Horsepower @ 100 RPM 2.95, Spider Material Urethane, Maximum Torque 1,860 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion Not Applicable, Angular Misalignment 1 Degrees , Color Blue, For Maximum Hub Bore 1 7/8 in, For Misalignment Type Angular, Parallel, Maximum Operating Temperature 160 Degrees F, Minimum Operating Temperature -30 Degrees F

Color	Blue
For Maximum Hub Bore	1 7/8 in
Maximum Operating Temperature	160 Degrees F
Maximum Speed	3,600 RPM
Angular Misalignment	1 Degrees
Resistance Properties	Chemical Resistant, Oil Resistant
System of Measurement	Inch
Standards	ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Spider Material	Urethane
For Misalignment Type	Angular, Parallel
Parallel Misalignment	0.015 in
Minimum Operating Temperature	-30 Degrees F
Durometer Hardness	55D
Weight	0.22 lb
Spider Type	Open Center Spider
Maximum Torque	1,860 in-lb
Horsepower @ 100 RPM	2.95
