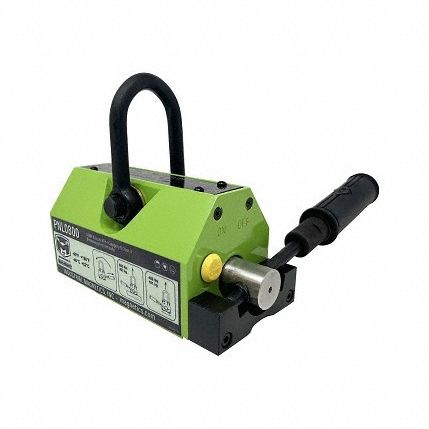

Mag-Mate PNL0800 Lifting Magnet, 800 lb Max Load Capacity, 800 lb Max Flat Load Capacity, On/Off Handle

Mag-Mate PNL0800 Lifting Magnet, 800 lb Max Load Capacity, 800 lb Max Flat Load Capacity, On/Off Handle

UPC: 682241264306 | Harmonization / Schedule B : 8505.11.0090

Country of Origin: China | Shipping Weight: 22.0 lbs

$945.35 - $945.35
$945.35
$945.35 - $945.35
$945.35

Lifting Magnet, Maximum Flat Load Capacity 800 lb, Maximum Round Load Capacity 400 lb, Minimum Thickness for Activation 1/4 in, Minimum Thickness for Maximum Load Capacity 3 in, Activation Mechanism On/Off Handle, Magnet Length 6 3/8 in, Magnet Width 3 5/8 in, Magnet Height 3 7/8 in, Overall Length 7-7/8 in, Overall Width 3 5/8 in, Overall Height 8 7/8 in, Bail Inside Width 1 3/4 in, Bail Inside Length 2 3/8 in, Handle Length 8 in, Minimum Operating Temperature -10 Degrees F

Overall Length 7-7/8 in
Bail Opening Height 2 3/8 in
Overall Height 8 7/8 in
Overall Width 3 5/8 in
Magnet Length 6 3/8 in
Magnet Height 3 7/8 in
Bail Opening Width 1 3/4 in
Min. Material Thickness for Activation 1/4 in
Handle Length 8 in
Max. Rated Capacity @ Min. Activation Thickness 270 lb
Magnet Width 3 5/8 in
Required Material Thickness for Max Rated Capacity 3 in
Bail Thickness 1/2 in
Bail Inside Width 1 3/4 in
Minimum Thickness for Activation 1/4 in
Minimum Thickness for Maximum Load Capacity 3 in
Bail Inside Length 2 3/8 in
Wire Rope Length 7-7/8 in
Standards ASME B30.20
Max. Rated Flat Capacity 800 lb
Magnet Material Neodymium
Max. Heat Resistant Temp. 180 Degrees F
Max. Rated Round Capacity 400 lb
Features Lifts Flat and Round Loads
Magnet Activation Locking On/Off Handle
Includes Lock-On, Lock-Off Handle
Maximum Load Capacity 800 lb
Minimum Operating Temperature -10 Degrees F
Maximum Operating Temperature 180 Degrees F
Maximum Flat Load Capacity 800 lb
Maximum Round Load Capacity 400 lb
Number of Poles 2
Activation Mechanism On/Off Handle
Country of Origin China
