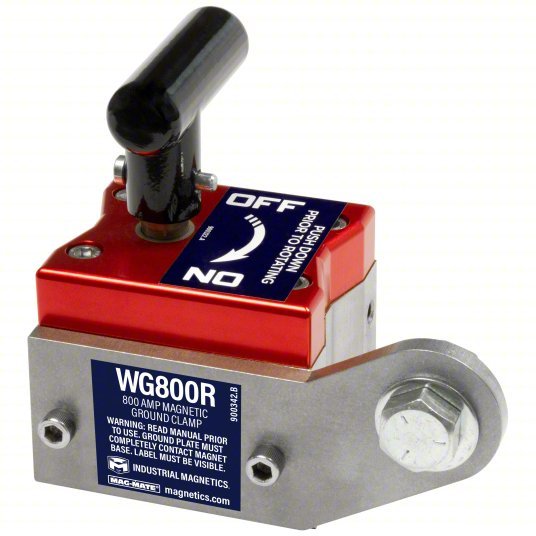

Mag-Mate WG800R Magnetic Welding Ground 800 A, 1/0 AWG, 450 lb Max Pull, Steel

Magnetic Welding Ground, Maximum Current 800 A, Compatible Cable Gauge (Maximum) 1/0 AWG, Clamp Body Material Steel, Maximum Pull 450 lb, Cable Connection Type Bolt and Nut, Clamp Type On/Off Welding Ground, Compatible with Surface Type Flat, Pipe, Features Rare Earth Magnetic Ground, Includes 1/2-13 x 1-1/4 In. Lg Grd bolt, Overall Height 4.6 in, Overall Length 5 in, Overall Width 3 in, Positioning Angles 45 Degrees , 75 Degrees , 90 Degrees , 105 Degrees , 135 Degrees

Amps	800 A
Material	Steel
Type	Duct Mount
Color	Red
Characteristics	Nut and Bolt Cable Connection
Includes	1/2-13 x 1-1/4" Lg Grd bolt
Max. Pull	450 lb.
Stability Temp.	180 Degrees F
Max. Pull (Lb.)	450 lb
On/Off Setting	Yes
Features	Rare Earth Magnetic Ground
Cable Connection Type	Bolt and Nut
Positioning Angles	45 Degrees , 75 Degrees , 90 Degrees , 105 Degrees , 135 Degrees
Clamp Body Material	Steel
Maximum Current	800 A
Maximum Pull	450 lb
Compatible with Surface Type	Flat, Pipe
Clamp Type	On/Off Welding Ground
Compatible Cable Gauge (Maximum)	1/0 AWG
