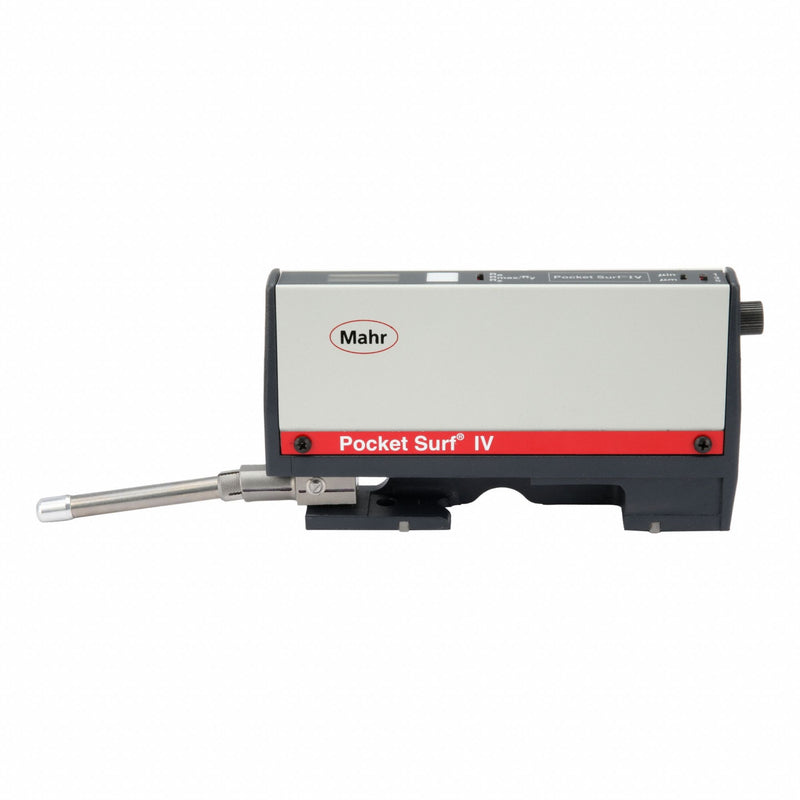

Mahr 2191800 Marsurf Pocket Surf IV Handheld Surface Roughness Tester, Ra/Rmax/Ry/Rz, 10 ΞΌm Piezoelectric Probe, Cabled RS232C/USB
Original price
$3,312.49
-
Original price
$3,312.49
Original price
$3,312.49
$3,312.49
-
$3,312.49
Current price
$3,312.49
Handheld Surface Roughness Tester
| Measuring Range | Ra: 6.35 micron m/250 micron in, Ry, Rmax, Rz: 25.3 micron m/999 micron in |
|---|---|
| Profile | Ra, Rz, Rmax |
| Number of Sampling Spans | 1; 3; 5 |
| Probe | 10 micron |
| Analysis Graph | No |
| Drive Unit | Traverse |
| Tester Series | Marsurf Pocket Surf IV |
| Detector | 15 mN |
| For Use With | Pocket Surf Probes |
| Power Supply | 9V Battery |
| Measuring Range Ra | 6.35 micrometer/250 microinch |
| Compatible Data Output Cable | Mfr. No. 4346020, Mfr. No. 4346023 |
| Minimum Operating Temperature - F | 41 Degrees F |
| Maximum Operating Temperature - F | 112 Degrees F |
| Parameters Measured | Ra, Rmax/Ry, Rz |
| Detector Measuring Force | 15 mN |
| Probe Sensor Type | Piezoelectric |
| SPC Output | Yes |
| Minimum Operating Temperature - C | 5 Degrees C |
| Measuring Range Rz | 25.3 micrometer/999 microinch |
| Maximum Operating Temperature - C | 45 Degrees C |
| Operating Position | Horizontal, Vertical, Upside Down |
| Probe Positions | 90 degrees, 180 degrees, 270 degrees, Axial (Folded) |
| Case Type | Carrying Case |
| Display Functions | LCD |
| IP Rating | Not Rated |
| Data Output Type | Cabled |
| Measuring Range (mm) | 6.35 micron m |
| Drive Unit Principle | Skid |
| Construction | Cast Aluminum |
| Measuring Condition Standards | DIN ISO/JIS |
| Profile Resolution | 0.01 micron, 1 microinch |
| Number of Parameters Measured | 4 |
| Data Output Connection Type | RS232C, USB |
| Measuring Range (In.) | 6.35 micrometer/250 microinch |
| Memory Storage Capacity | 1 |
| Operating Temperature Range | 41 Degrees F to 112 Degrees F / 5 Degrees C to 45 Degrees C |
| Includes Printer | No |
| Calibration Functions | Digital Calibration |
| Product Type | Handheld Surface Roughness Tester |
| Ra Measured - Maximum | 30 um |
| Inches Measured - Minimum | 0.075 in |
| Operating Temperature - Minimum | 41 Degrees F |
| Rz Measured - Maximum | 200 um |
| Operating Temperature - Maximum | 112 Degrees F |
| Millimeters Measured - Maximum | 5 mm |
| Millimeters Measured - Minimum | 2 mm |
| Inches Measured - Maximum | 0.195 in |
| Country of Origin | United States |
