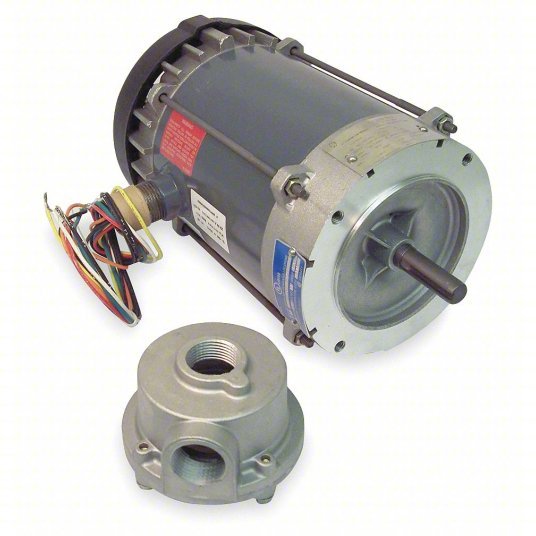

Marathon 056C17G15526 Hazardous Location Motor 1 C,D / 2 E,F,G, 1/3 HP, 1,725 Nameplate RPM, 56C Frame

Marathon 056C17G15526 Hazardous Location Motor 1 C,D / 2 E,F,G, 1/3 HP, 1,725 Nameplate RPM, 56C Frame

$573.95 - $573.95
$573.95
$573.95 - $573.95
$573.95
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.1-3.3 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face
Phase Single
HP 1/3
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56C
Hazardous Location Class 1 C,D / 2 E,F,G
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Face
Max. Ambient Temp. 104 Degrees F
Frame Material Rolled steel
Motor Service Factor 1
Ins. Class B
Hz 60 Hz
Motor Bearings Ball
Motor Shaft Design Keyed
Full Load Amps 6.6/3.1-3.3 A
Nominal Efficiency 86.5 %
Motor Application Hazardous Location
Temp. Code T3B
Motor Shaft Rotation CW/CCW
Item Hazardous Location Motor
Duty Continuous
Motor Frame Material Steel
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Includes Conduit Box (Unmounted), Leads through 1 in NPT Nipple
Nameplate RPM 1,725
Standards CSA Certified (LR47504), UL Listed (E12044)
Conduit Box Location Exterior
Duty Cycle Continuous
No. of Speeds 1
Usable @ 208V Yes
Usable @ 200V No
Motor Mounting Position Horizontal
