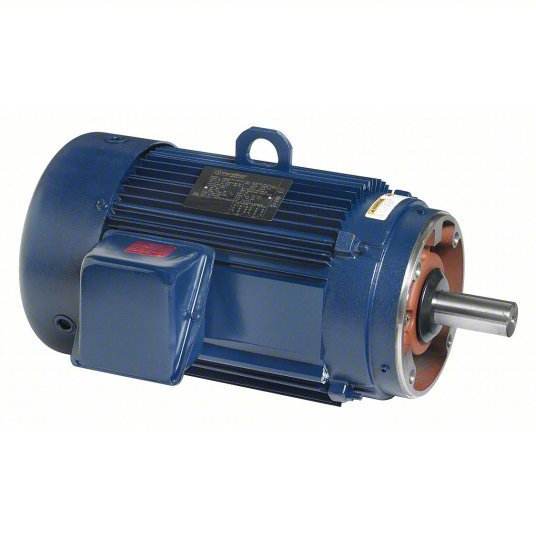

Marathon 254TTFL16039 General Purpose Motor Totally Enclosed Fan-Cooled, Face Mount, 15 HP, 230/460V AC

General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 37.5/18.8 A, 254TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal

Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Type	Face
HP	15
RPM Range	1,701-1,800
Voltage	230/460V AC
Frame	254TC
Motor Thermal Protection	None
Motor Service Factor	1.15
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application	General Application
Motor Design	3-Phase
Nameplate RPM	1,775
Motor Shaft Rotation	CW/CCW
Motor Mounting Position	Horizontal
Motor Frame Material	Aluminum
Motor Shaft Design	Keyed
Standards	CE, CSA, UL Recognized
Ins. Class	F
CC Number	CC003A
Nominal Efficiency	88.5 %
Hz	60/50 Hz
Phase	Three
Max. Ambient Temp.	104 Degrees F
Duty	Continuous
Inverter Rated	No
Motor Bearings	Ball
Motor Efficiency Group	NEMA Premium Efficient
No. of Speeds	1
Frame Material	Aluminum
Full Load Amps	37.5/18.8 A
RPM Group	1701-1800
Green Certification or Other Recognition	NEMA Premium(R) Rated
HP @ 50Hz	15
NEMA Design	B
Voltage @ 50Hz	230/460V AC
Weight	261 lb
Full Load Amps @ 50Hz	37.5/18.8 A
RPM @ 50Hz	1,775
Usable @ 200V	No
Duty Cycle	Continuous
Service Factor @ 50Hz	1.15
Usable @ 208V	No
