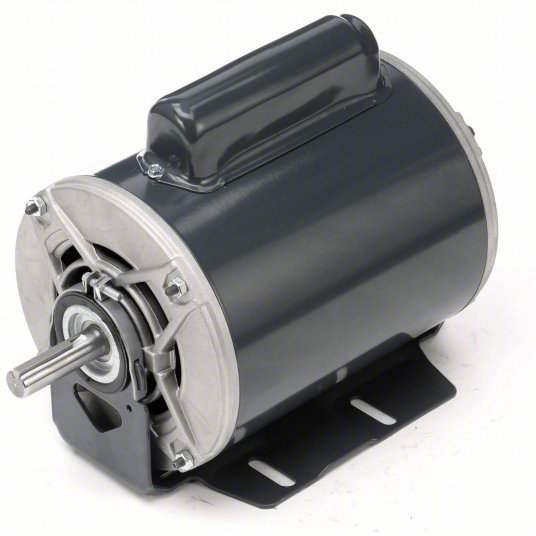

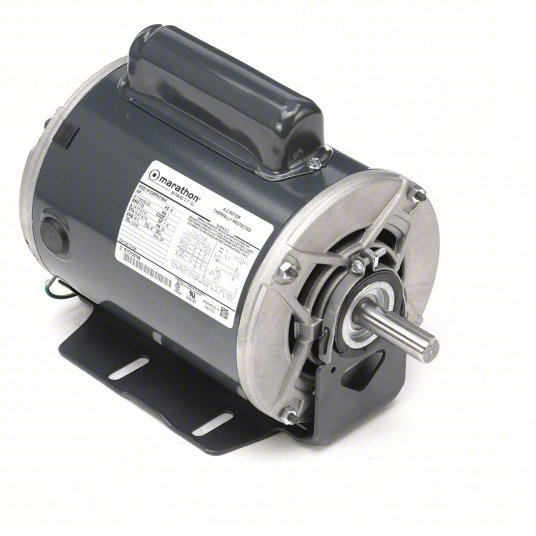

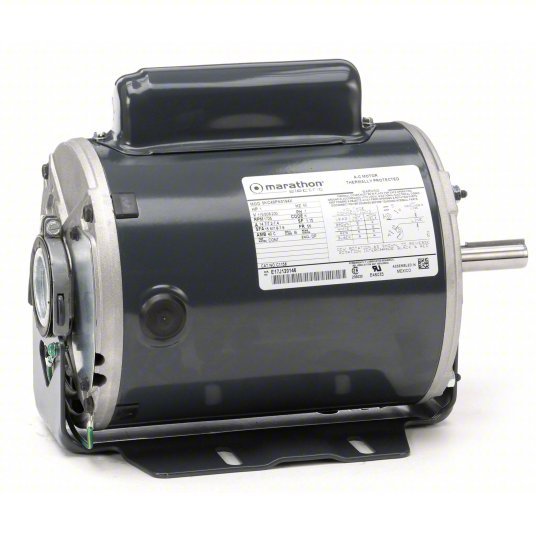

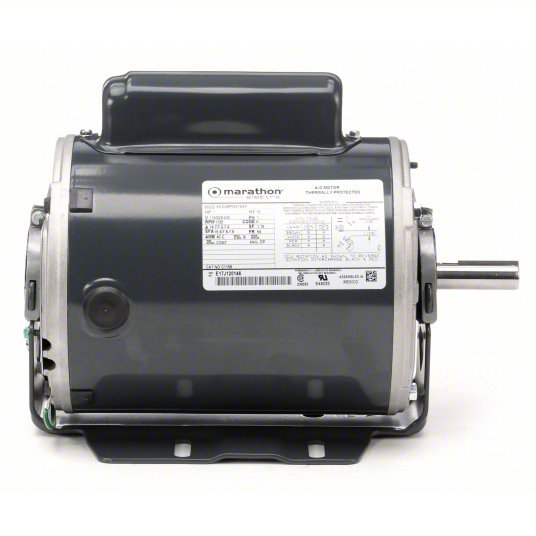

Marathon 5KC49PN0164X General Purpose Motor Open Dripproof, Cradle Base Mount, 1 HP, 1,725 Nameplate RPM
Original price
$512.38
-
Original price
$512.38
Original price
$512.38
$512.38
-
$512.38
Current price
$512.38
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| HP | 1 |
| Voltage | 115/208-230V AC |
| Frame | 56 |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.15 |
| No. of Speeds | 1 |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Application | General Application |
| Nameplate RPM | 1,725 |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Design | Capacitor-Start |
| Standards | CSA Certified, UL Listed |
| Nominal Efficiency | 70 % |
| Max. Ambient Temp. | 104 Degrees F |
| Full Load Amps | 14.7/7.2-7.4 A |
| Frame Material | Rolled steel |
| Motor Bearings | Ball |
| Ins. Class | B |
| RPM Group | 1701-1800 |
| Inverter Rated | No |
| Hz | 60 Hz |
| Phase | Single |
| Duty | Continuous |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Weight | 29 lb |
| Capacitor Required | Yes |
