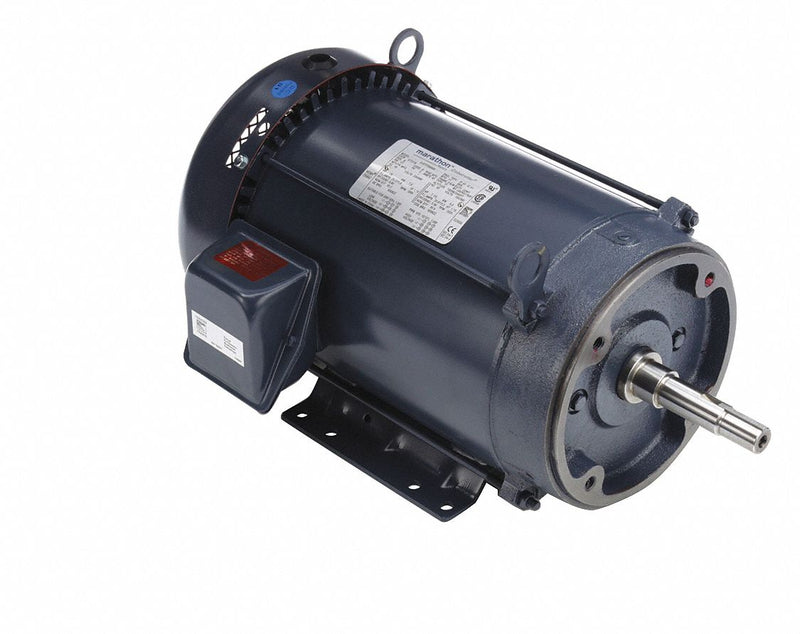

Marathon Motors 215TTFBD6006 Close-Coupled Pump Motor, 215JM Frame Size, C-Face/Rigid Base Mounting, 10 hp
UPC: | Harmonization / Schedule B : 8501.52.4000
Country of Origin: Mexico | Shipping Weight: 162.0 lbs
Original price
$2,830.44
-
Original price
$2,830.44
Original price
$2,830.44
$2,830.44
-
$2,830.44
Current price
$2,830.44
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 23.6/11.8, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 17 5/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
| Motor Design | Three-Phase |
|---|---|
| HP | 10 |
| RPM Range | 3,001-3,600 |
| Nameplate RPM | 3,520 |
| Voltage | 230/460V AC |
| Frame | 215JM |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Phase | Three |
| Ins. Class | F |
| Duty | Continuous |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Full Load Amps | 23.6/11.8 A |
| Hz | 60 Hz |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Inverter Rated | Inverter Rated |
| Motor Bearings | Ball |
| Frame Material | Steel |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Motor Shaft Rotation | CW/CCW |
| Motor Application | Pump |
| Motor Shaft Design | JM Threaded |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Standards | CE Mark, CSA Certified, UL Recognized |
| Nominal Efficiency | 90.2 % |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Weight | 170 lb |
| Conduit Box Location | Exterior |
| Motor Mounting Position | Horizontal |
| Inverter Rating | 10:1 |
| Usable @ 208V | Not Usable at 208V |
| Usable @ 200V | Not Usable at 200V |
| No. of Speeds | 1 |
| NEMA Design | B |
| Duty Cycle | Continuous |
| Conduit Box Position | F1, F2 |
| Shaft Thread Type | JM |
| NEMA Design Class | B |
| Application | Pump |
| Number of Speeds | 1 |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Efficiency Rating | Premium Efficiency (IE3) |
| Frequency | 60 Hz |
| Insulation Class | F |
| Product Type | Pump Motor |
| Ambient Temperature - Maximum | 40 Degrees C |
| Mounting Position | Horizontal |
| Full Load Current @ 60 Hz | 23.6/11.8 A |
| Bearing Type | Ball |
| Shaft Design | Threaded |
| Country of Origin | Mexico |
