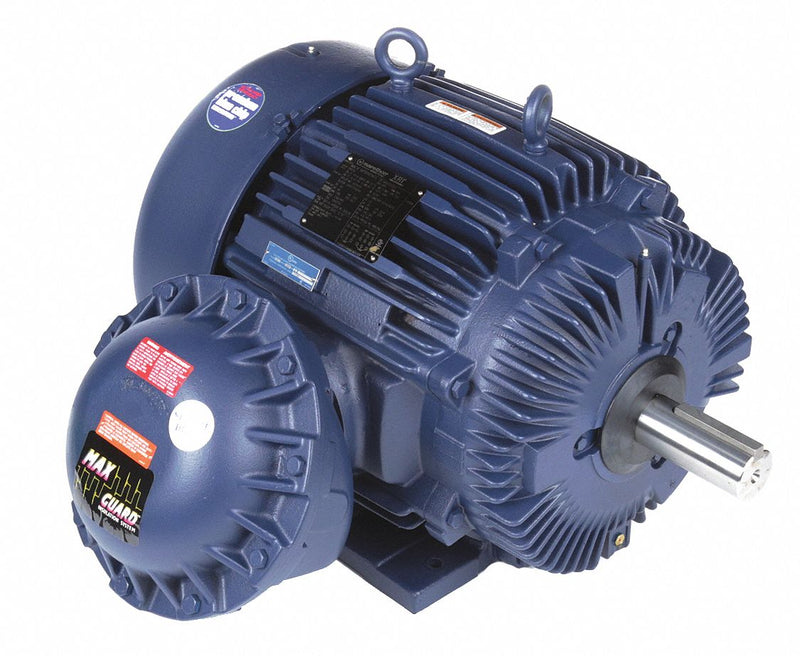

Marathon Motors 364TTGS16577 Hazardous Location Motor, Division I, Class I/Class II, Rigid Base, 40 hp Horsepower
UPC: | Harmonization / Schedule B : 8501.52.8040
Country of Origin: United States | Shipping Weight: 1030.0 lbs
Original price
$16,852.69
-
Original price
$16,852.69
Original price
$16,852.69
$16,852.69
-
$16,852.69
Current price
$16,852.69
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,185 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 100.0/50.0 A, 364T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
| Length Less Shaft | 25 5/8 in |
|---|---|
| Shaft Dia. | 2 3/8 in |
| Lead Length | 8 in |
| Shaft Length | 6 1/8 in |
| Overall Length | 31 3/4 in |
| Manufacturers Warranty Length | 3 yr |
| Frame Size | 364T |
| Shaft Diameter | 2 3/8 in |
| Wire Rope Length | 31 3/4 in |
| Length | 31 3/4 in |
| Motor Design | Three-Phase |
| Phase | Three |
| HP | 40 hp |
| RPM Range | 1,101-1,200 |
| Voltage | 230V AC, 460V AC |
| Frame | 364T |
| Hazardous Location Class | Class I, Class II |
| Motor Thermal Protection | T-Stat |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Motor Shaft Design | Keyed |
| Motor Application | Hazardous Location |
| Full Load Amps | 100.0/50.0 A |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Motor Frame Material | Cast Iron |
| CC Number | CC003A |
| Temp. Code | T3B |
| Ins. Class | F |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 40 Degrees C |
| Includes | (11) Leads in the Conduit Box |
| Standards | CSA Certified, UL Listed |
| Nameplate RPM | 1,185 RPM |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Hz | 60 Hz |
| Motor Service Factor | 1.15 |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| NEMA Design | B |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Nominal Efficiency | 94.1 % |
| Motor Bearings | Ball |
| Usable @ 208V | Not Usable at 208V |
| Conduit Box Location | Exterior |
| Motor Mounting Position | Horizontal |
| Duty Cycle | Continuous |
| Hazardous Location Division | Division I |
| No. of Speeds | 1 |
| Usable @ 200V | Not Usable at 200V |
| Weight | 2,102 lb |
| Hazardous Location Group | Group C, Group D, Group F, Group G |
| Mounting Position | Horizontal |
| Manufacturers Warranty | 3 yr |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Insulation Class | F |
| NEMA Design Class | B |
| Bearing Type | Ball |
| Ambient Temperature - Maximum | 40 Degrees C |
| Number of Speeds | 1 |
| Frequency | 60 Hz |
| Full Load Current @ 60 Hz | 100.0/50.0 A |
| Product Type | Hazardous Location Motor |
| Application | Hazardous Location |
| Temperature Code | T3B |
| Shaft Design | Keyed |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Country of Origin | United States |
