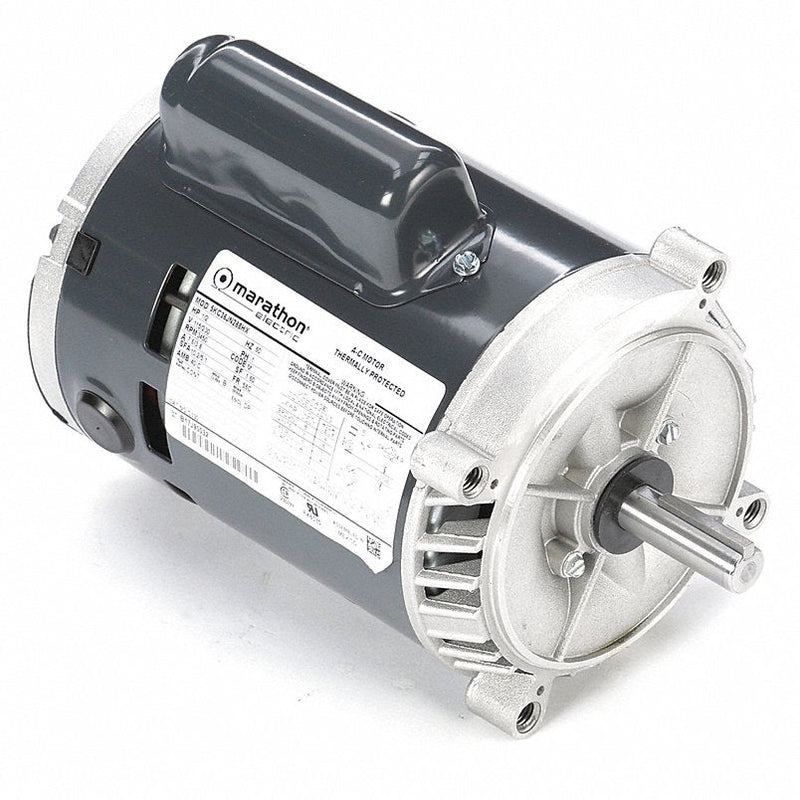

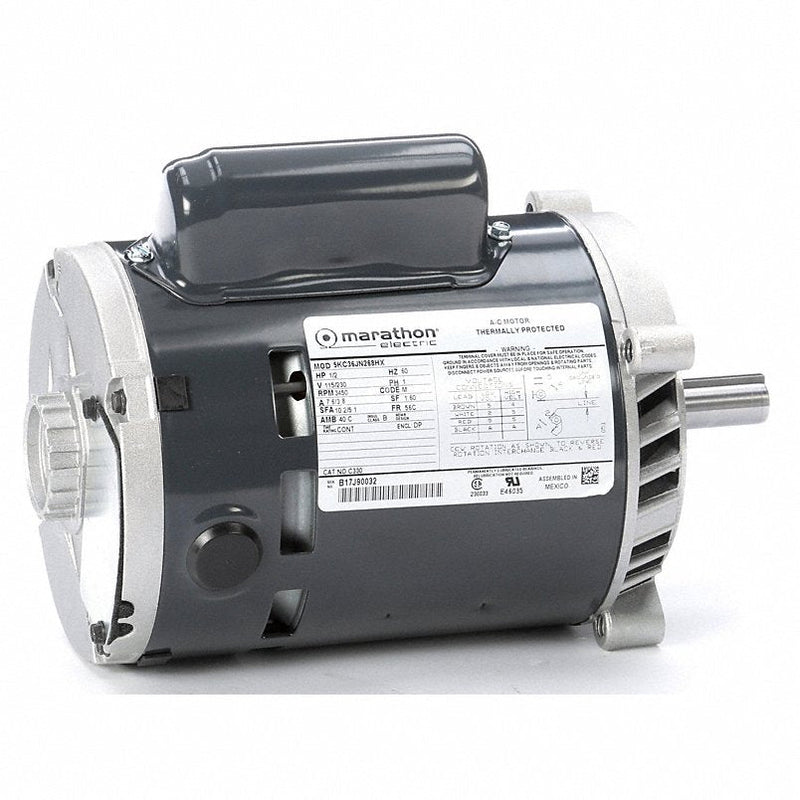

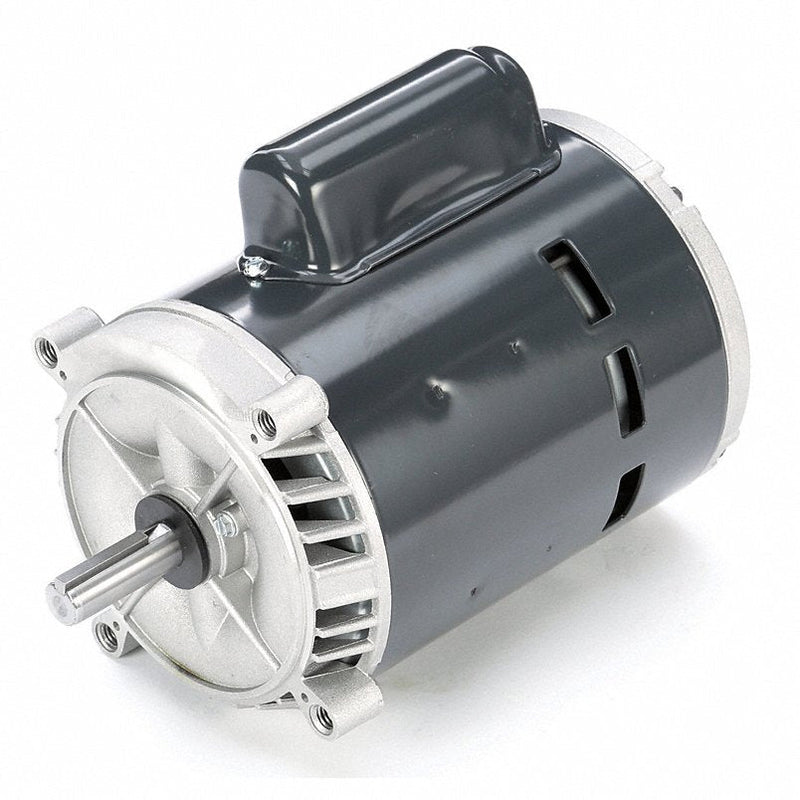

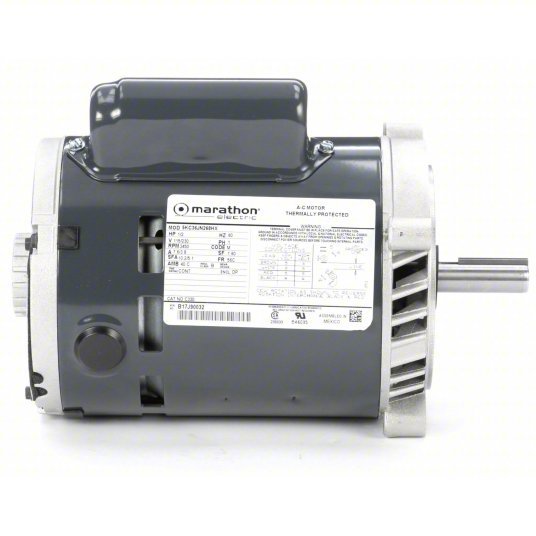

Marathon Motors 5KC36JN268X Jet Pump Motor: Open Dripproof, Face Mounting, 1/2 HP, 3,450 Nameplate RPM, CW/CCW
Original price
$340.99
-
Original price
$340.99
Original price
$340.99
$340.99
-
$340.99
Current price
$340.99
Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56C, Hz 60, Full Load Amps 7.6, 3.8, Height 6 1/2 in, HP 1/2, Ins. Class B, Length Less Shaft 8 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
| Duty | Continuous |
| Item | Jet Pump Motor |
| Hz | 60 |
| HP | 1/2 |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Shaft Rotation | CW/CCW |
| Motor Service Factor | 1.6 |
| Motor Thermal Protection | Auto |
| Shaft Material | Carbon Steel |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Standards | CSA, UL |
| Motor Mounting Position | All Angle |
| Motor Application | Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 62.3 % |
| Ins. Class | B |
| Motor Sub Application | Jet Pump |
| Max. Ambient Temp. | 40 Degrees C |
| Frame | 56C |
| Phase | Single |
| RPM Range | 3,001-3,600 |
| Motor Mounting Type | Face |
| Voltage | 115/230V AC |
| Full Load Amps | 7.6, 3.8 |
| Nameplate RPM | 3,450 |
| Usable @ 200V | No |
| Motor Frame Material | Steel |
| Duty Cycle | Continuous |
| Weight | 20 lb |
| Usable @ 208V | No |
| No. of Speeds | 1 |
| Shaft Type | Keyed |
| Package Quantity | 1 |
