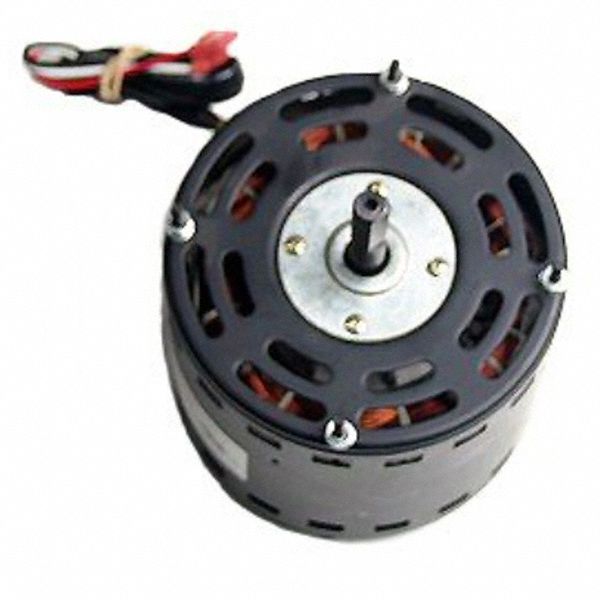

Maxx Air XE425 Drum Fan Motor, MAXX AIR, XE425
UPC: | Harmonization / Schedule B : 8501.52.4000
Country of Origin: China | Shipping Weight: 15.2 lbs
Original price
$186.57
-
Original price
$186.57
Original price
$186.57
$186.57
-
$186.57
Current price
$186.57
Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 2, Voltage 120V AC, Full Load Amps 5.5 A, 48 Frame, OEM Replacement Brand Maxx Air, Motor Service Factor 4, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Motor Enclosure Design Open Drip Proof, Motor Mounting Position Horizontal
| Shaft Dia. | 5/8 in |
|---|---|
| Shaft Length | 1.97 in. |
| Overall Length | 6 1/2 in |
| Length Less Shaft | 4 1/2 in |
| Shaft Diameter | 5/8 in |
| Frame Size | 48 |
| Wire Rope Length | 6 1/2 in |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 HP |
| RPM Range | 1,701-1,800 |
| No. of Speeds | 2 |
| Voltage | 120 V |
| Frame | NEMA 48 |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Strut |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 140 Degrees F |
| Nameplate RPM | 1730 |
| Motor Application | Replace old, non-functioning motor for select Maxx Air Drum Fans |
| Voltage Compatibility | 120V |
| Motor Service Factor | 4 |
| Motor Bearings | Ball |
| Application | Fan/Blower |
| Full Load Amps | 5.5 A |
| Includes | 2" Pulley, Belt Drive Fan Motor |
| Motor Shaft Design | Single Flat Shaft |
| OEM Replacement Brand | Maxx Air |
| Mounting Position | Horizontal |
| Nameplate Service Factor @ 60 Hz | 4 |
| Bearing Type | Ball |
| Full Load Current @ 60 Hz | 5.5 A |
| Number of Speeds | 2 |
| Compatible Brand | MAXX AIR |
| Ambient Temperature - Maximum | 60 Degrees C |
| Motor Enclosure Type | Open Drip Proof |
| Shaft Design | Flat |
| Country of Origin | China |
