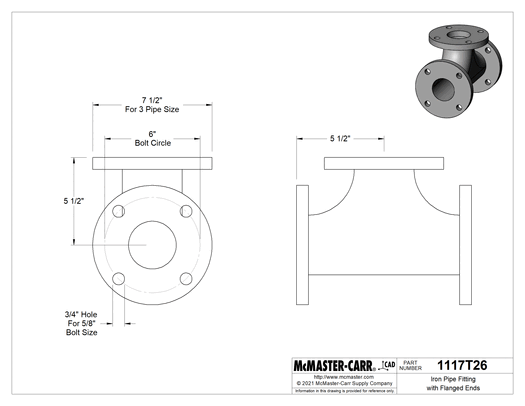

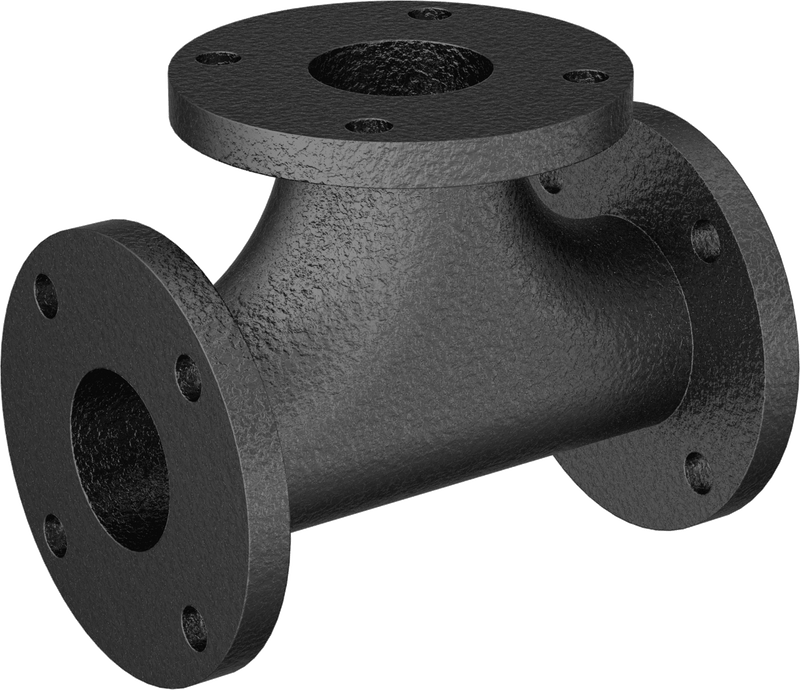

McMaster 1117T26 Iron Pipe Fitting with Flanged Ends, FM-Approved, Tee Connector, 3 Pipe Size
Original price
$784.49
-
Original price
$784.49
Original price
$784.49
$784.49
-
$784.49
Current price
$784.49
FM approved, these fittings are suitable for use in fire-protection systems. All have flat-surface flanged ends that only mate to another same-size flat-surface flange, pump, or valve with a gasket (sold separately) to create an access point in a pipeline. Use them in noncorrosive areas.
| Pressure Rating | Low Pressure |
| End Type | Flanged |
| Shape | Tee |
| Fitting Type | Connector |
| Fitting Connection | Flanged |
| Pipe Size | 3 |
| Flange OD | 7 1/2" |
| Material | Iron |
| Maximum Pressure @ Temperature | 150 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 125 psi @ 350° F |
| Certification | FM Approved, UL Listed |
| Bolt Circle Diameter | 6" |
| Bolt Hole Diameter | 3/4" |
| Number of Bolt Holes | 4 |
| Connects To | Pipe |
| Fabrication | Cast |
| Flanged Connection Surface | Flat |
| For Bolt Diameter | 5/8" |
| Class | 150 |
| For Bolt Material | Steel |
| For Pipe Material | Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Military Specification | Fed. Spec. WW-F-406 |
| Specifications Met | ASME B1.20.1, ASME B16.1, ASTM A126, ASTM B307 |
| Country of Origin | Mexico |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730711.0030 |
| USMCA Qualifying | No |
