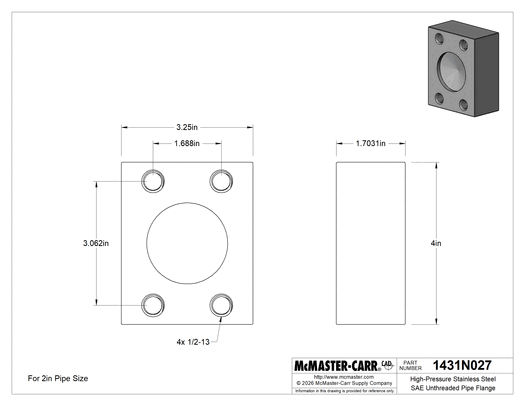

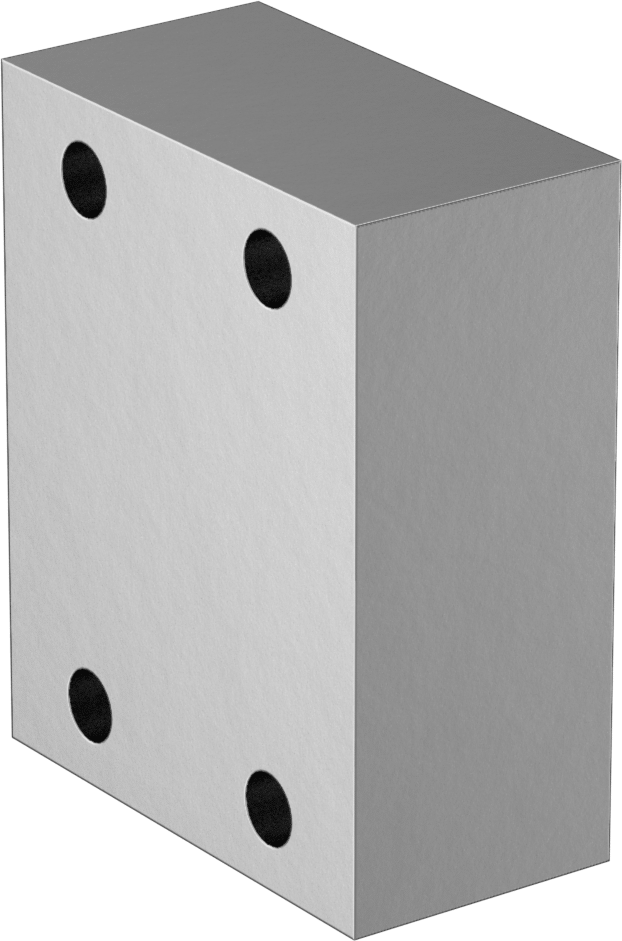

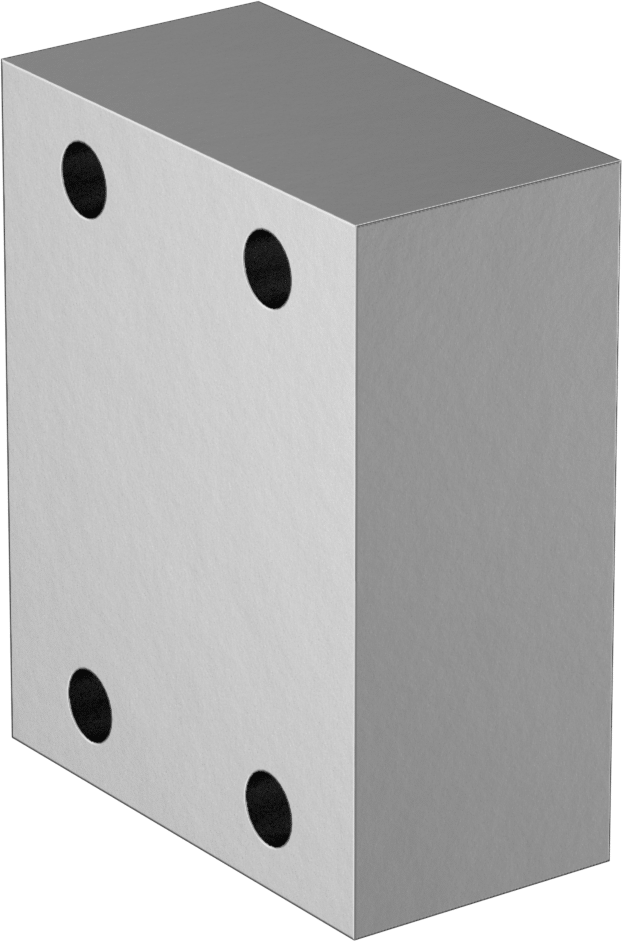

McMaster 1431N027 High-Pressure Stainless Steel SAE Unthreaded Pipe Flange, Cap with Flat Surface on Back, 2 SAE Flange Size
Original price
$578.73
-
Original price
$578.73
Original price
$578.73
$578.73
-
$578.73
Current price
$578.73
Create an access point in a high-pressure hydraulic fluid line with these flanges. They are also known as Code 61 SAE hydraulic flanges. To connect, bolt a flange with an O-ring groove surface to a flange with a flat surface of the same size. Flanges are 316 stainless steel for excellent corrosion resistance.
316/316L Stainless Steel — Flanges are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel flanges, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.
| Pressure Rating | High Pressure |
| Flange Standard | SAE |
| Fabrication | Machined |
| Shape | Cap and Plug |
| Fitting Type | Cap, Flange |
| Fitting Connection | Flanged |
| Material | 316/316L Stainless Steel |
| SAE Pipe Flange Size | 2 |
| Dash Size | 32 |
| Flanged Connection Surface | Flat |
| For Bolt Diameter | 1/2" |
| Bolt Hole Diameter | 0.531" |
| Number of Bolt Holes | 4 |
| Maximum Pressure @ Temperature | 3,000 psi @ 72° F |
| (A) | 1.688" |
| (B) | 3.063" |
| Connects To | Pipe |
| Height | 4" |
| Width | 3 1/4" |
| Depth | 1 45/64" |
| Flange Code | 61 |
| Flange Construction | One Piece |
| Flange Type | Blind |
| For Bolt System of Measurement | Inch |
| For Use With | Hydraulic Fluid |
| Mounting Hardware Included | No |
| Performance | Chemical Resistant, Ultra Corrosion Resistant |
| Specifications Met | ISO 6162, SAE J518 |
| Threading | Unthreaded |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | 2B999 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730721.0000 |
| USMCA Qualifying | Yes |
