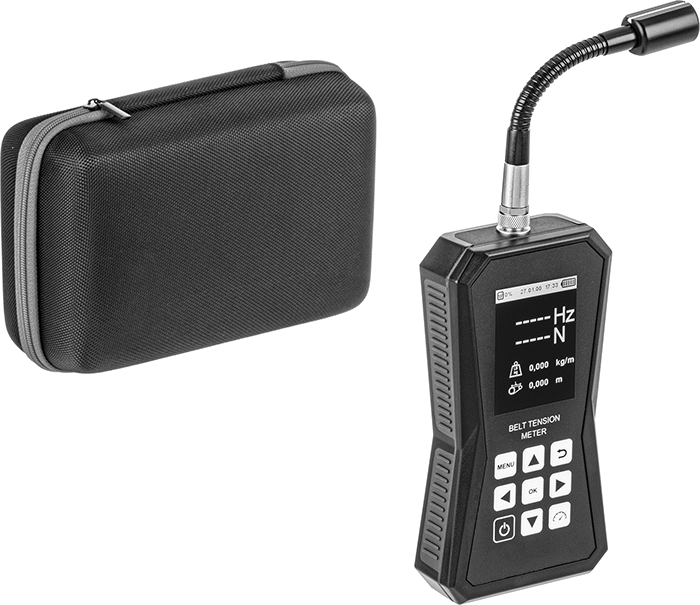

McMaster 1455T103 Economy Ultrasonic Belt Tension Gauge, V/Flat/Timing Belts, 1–99,900 lbf Range
Original price
$1,754.36
-
Original price
$1,754.36
Original price
$1,754.36
$1,754.36
-
$1,754.36
Current price
$1,754.36
Non-contact ultrasonic belt tension gauge. Read the frequency of a plucked belt and convert to tension force. Handles V, flat, and timing belts of any width. Data logging capabilities and flexible probe for hard-to-reach installations.
| Grade | Economy |
| For Belt Type | V, Flat, Timing |
| For Maximum Belt Width | Any |
| Tension Force Rating | 1 lbf to 99,900 lbf (1 N to 444,000 N) |
| Tension Frequency Rating | 10 Hz to 900 Hz |
| Height | 6" |
| Width | 3" |
| Depth | 1 1/2" |
| Cord Length | 6" |
| Power Source | Battery (3 × AA disposable, included) |
| Features | Flexible Probe, Keypad, Data Logging Capabilities |
| Includes | Plastic case |
| Country of Origin | Germany |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 903180.8080 |
| USMCA Qualifying | No |
