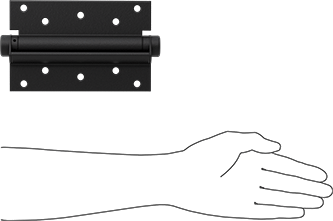

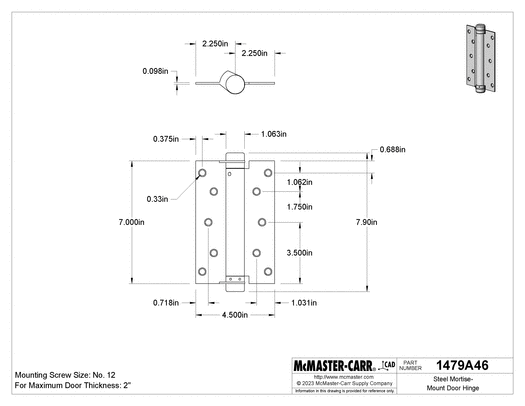

McMaster 1479A46 Mortise-Mount Door Hinge with Nonstd Holes, Square Corners, Black Steel, for 2" Door
The mounting hole pattern does not follow an industry standard, which means you can work around worn mounting holes when replacing template hinges. Springs in the hinges automatically swing doors and gates closed behind you. To adjust the closing tension, use the included tension adjustment tool. The hinge leaves fit into cutouts (mortises) to mount flush with door and frame edges.
For hinges with a capacity of 155 and 175 lbs., capacity is based on three hinges per door with a maximum door size of 7' Ht. × 4' Wd.
Hinges that meet UL 10C are UL Listed for use with labeled fire doors.
|
Hinge Type
|
Butt |
|
Mount Type
|
Screw-On |
|
Mounting Holes
|
With Holes |
|
Mounting Hole Pattern
|
Nonstandard |
|
Mounting Style
|
Mortise |
|
Opening/Closing Action
|
Self-Closing |
|
Closing Tension
|
Adjustable |
|
Material
|
Painted Low-Carbon Steel |
|
Corner Shape
|
Square |
|
Color
|
Black |
|
For Maximum Door Thickness
|
2" |
|
Door Leaf
|
|
|
Height
|
7" |
|
Width
|
2 1/4" |
|
Frame Leaf
|
|
|
Height
|
7" |
|
Width
|
2 1/4" |
|
Overall Width
|
4 1/2" |
|
Leaf Thickness
|
0.980" |
|
Range of Motion
|
180° |
|
Capacity
|
175 lbs. |
|
Door Mounting Location
|
Reversible |
|
Pin Diameter
|
1 1/16" |
|
Pin Material
|
Steel |
|
Specifications Met
|
UL Listed |
|
Fire Safety Standard
|
UL 10C |
|
Fire Safety Rating
|
3 hr. for metal fire doors |
|
Mounting Fasteners Included
|
Yes |
|
Number of Mounting Holes
|
10 |
|
Mounting Hole Style
|
Countersunk |
|
Mounting Screw Size
|
No. 12 |
|
Includes
|
Tension Adjustment Tool |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Peoples Republic of China or United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
830210.4030 |
|
ECCN
|
EAR99 |
