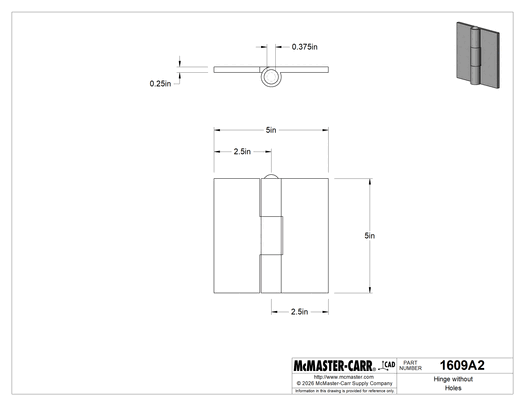

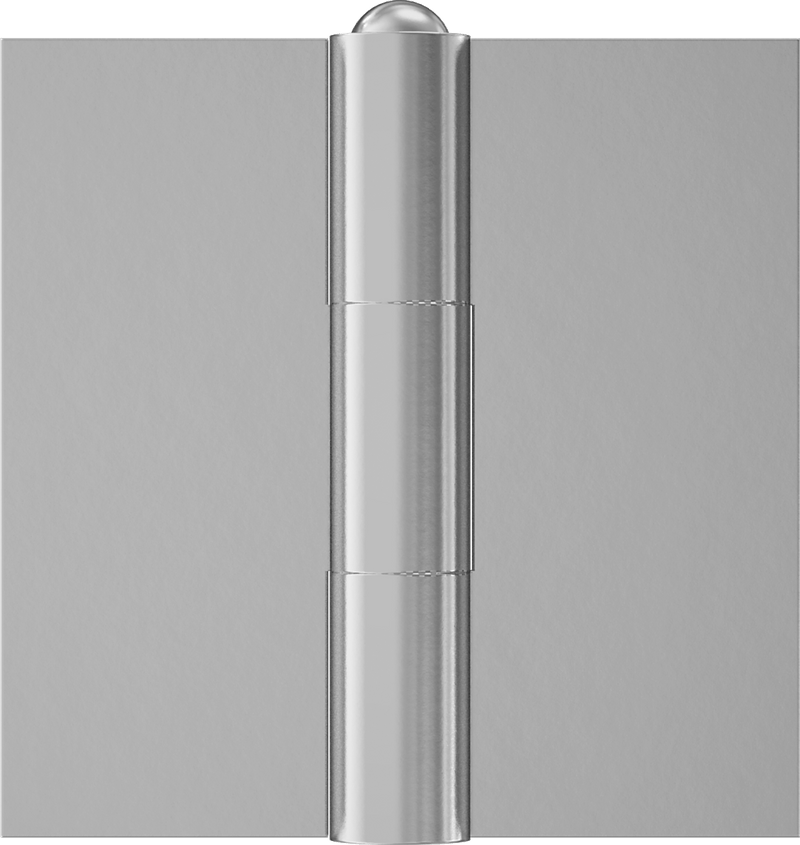

McMaster 1609A2 Hinge without Holes, Removable Pin, 5" × 2-1/2" Door Leaf, 1/4" Leaf Thickness
Original price
$111.27
-
Original price
$111.27
Original price
$111.27
$111.27
-
$111.27
Current price
$111.27
Install these hinges your way by drilling holes or welding onto doors and frames. They offer more mounting flexibility than hinges with holes.
| Mounting Location | Surface |
| Material | Aluminum |
| Pin Type | Removable |
| Door Leaf Height | 5" |
| Door Leaf Width | 2 1/2" |
| Overall Width | 5" |
| Leaf Thickness | 0.250" |
| Range of Motion | 265° |
| Pin Material | 5052 Aluminum |
| Appearance | Dull |
| Door Mounting Location | Left Side, Right Side |
| For Door Type | Cabinet, Chest, Enclosure, Gate, Hatch |
| Hinge Type | Butt |
| Mount Type | Screw On, Weld On |
| Mounting Holes | Without Holes |
| Opening/Closing Action | Open/Close Freely |
| Pin Diameter | 3/8" |
| Weight Capacity | Not Rated |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 830210.4090 |
| USMCA Qualifying | Yes |
