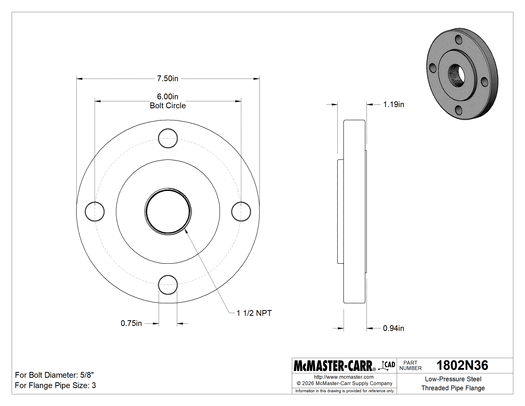

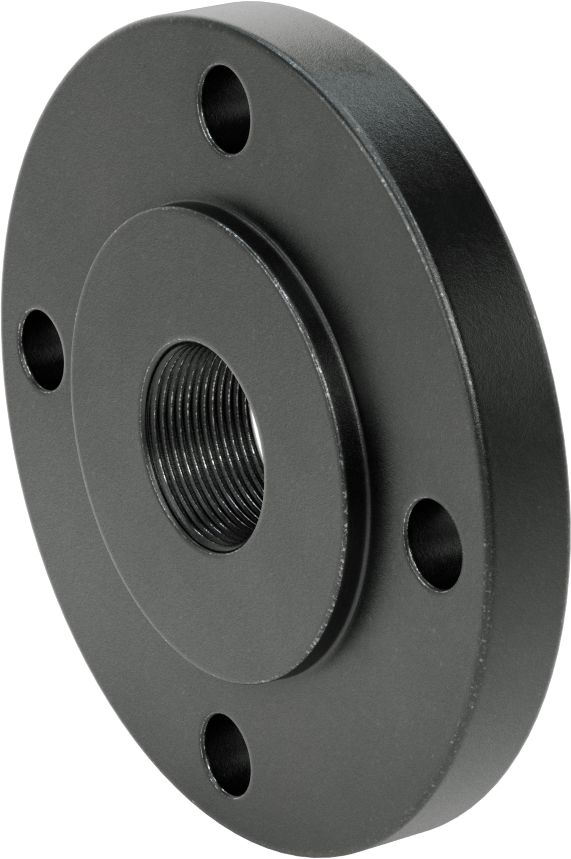

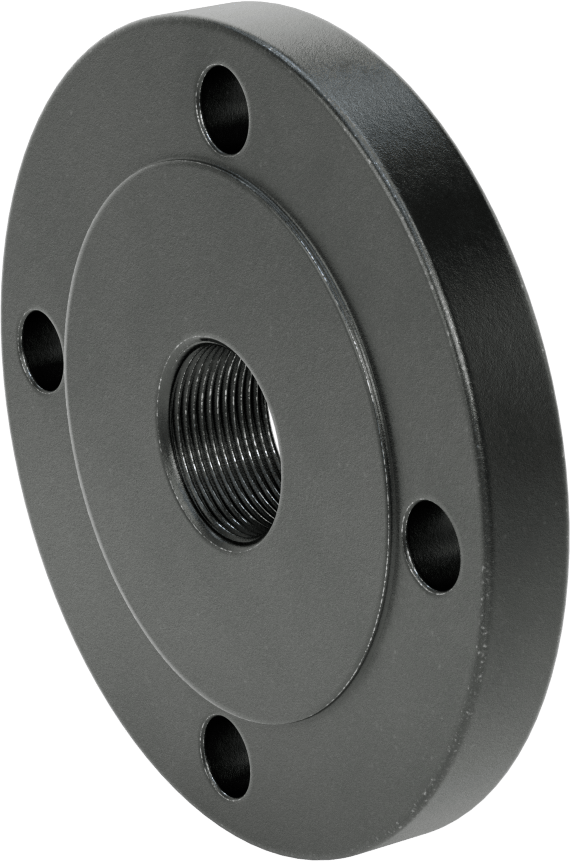

McMaster 1802N36 Low-Pressure Steel Threaded Pipe Flange, 1-1/2 NPT × 3 Flange Pipe Size
Original price
$255.42
-
Original price
$255.42
Original price
$255.42
$255.42
-
$255.42
Current price
$255.42
Use these flanges for low-pressure applications in noncorrosive environments. Bolt two flanges of the same size together with a gasket (sold separately) to create an access point within a line.
| Pressure Rating | Low Pressure |
| Fabrication | Forged |
| Shape | Straight |
| Fitting Type | Reducer, Flange |
| Fitting Connection | NPT Female |
| Pipe Size (A) | 1 1/2 |
| For Flange Pipe Size (B) | 3 |
| Flanged Connection Surface (B) | Raised |
| Flange OD | 7 1/2" |
| For Bolt Diameter | 5/8" |
| Bolt Hole Diameter | 3/4" |
| Number of Bolt Holes | 4 |
| Bolt Circle Diameter | 6" |
| Pressure Class | 150 |
| Material | Steel |
| Maximum Pressure @ Temperature | 285 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 230 psi @ 300° F |
| Certificate Form | Digital |
| Certificate Type | Material Certificate with Traceable Lot Number |
| Connects To | Pipe |
| Flange Construction | One Piece |
| For Fitting Material | Iron, Steel |
| For Pipe Material | Steel |
| For Pipe Schedule | 40 |
| For Fitting Pressure Class | 125, 150 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Specifications Met | ANSI/MSS SP-25, ASME B16.5, ASTM A105, MSS SP-6 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730791.2000 |
| USMCA Qualifying | Yes |
