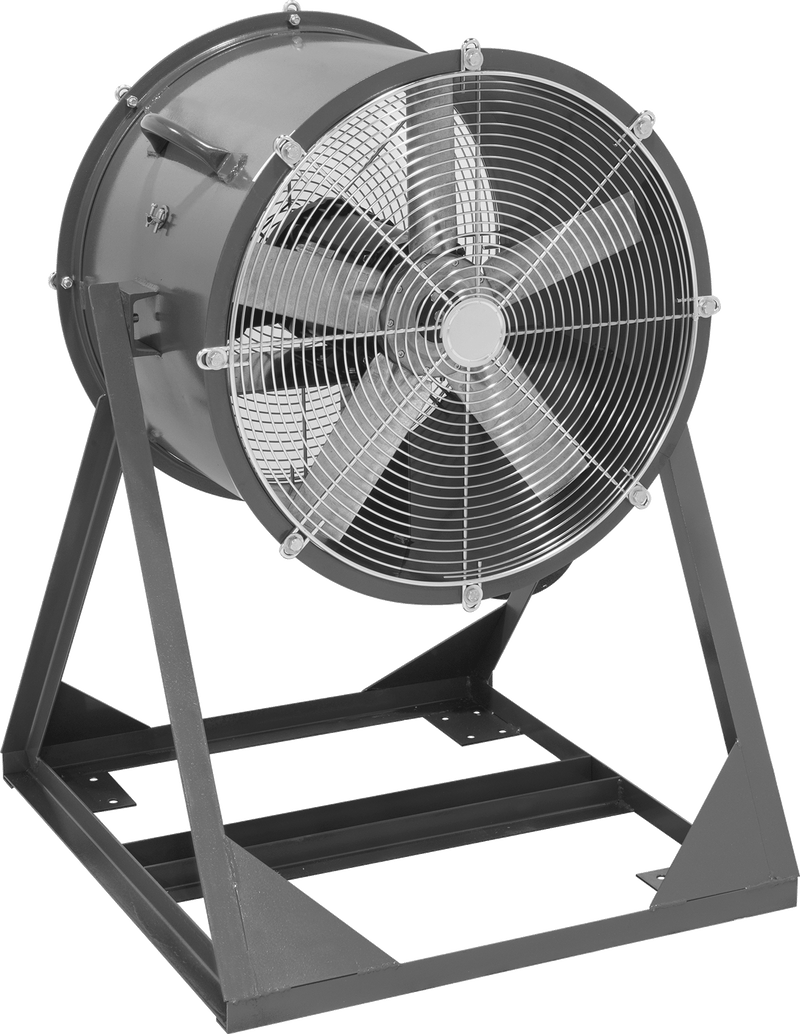

McMaster 1903K54 Hazardous Location Jet Stream Fan, without Wheels, 120/230V AC, 18" Blade Diameter
Original price
$3,768.71
-
Original price
$3,768.71
Original price
$3,768.71
$3,768.71
-
$3,768.71
Current price
$3,768.71
UL listed for use in hazardous environments, these fans are often used to cool warehouse aisles and production lines. They generate a stream of air that travels farther than air from conventional fans. All fans have a totally enclosed motor enclosure, which can be used in dirty, dusty, and wet environments.
Direct Drive — Direct-drive fans have fewer moving parts than belt-drive fans for less maintenance.
| Mounting Location | Floor |
| Mounting Type | Freestanding |
| Voltage and Connection | 120/230V AC, Single Phase—Hardwire |
| Blade Diameter | 18" |
| Blade Material | Aluminum |
| Airflow | 4,000 ft³/min |
| Volume (Sound) @ Distance | 76 dBA @ 10 ft. |
| Motor Speed | 1,750 rpm |
| Number of Speeds | 1 |
| Power | 1/3 hp |
| Current | 6.0 amp/3.0 amp |
| Overall Height | 38" |
| Overall Width | 24" |
| Overall Depth | 32" |
| Fan Head Movement | Non-Oscillating |
| Drive Type | Direct |
| Housing Material | Steel |
| Guard Material | Steel |
| Application | Cooling |
| Certification | CSA Certified, UL Listed |
| Environment | Hazardous |
| Hazardous Location Protection Type | Explosion Proof |
| Hazardous Location Rating | NEC Class I Divisions 1, 2 Groups C, D; NEC Class II Divisions 1, 2 Groups E, F, G |
| Mobility | Stationary |
| Motor Enclosure Type | Totally Enclosed |
| NEC Hazardous Location Temperature Classification | T3C (320° F) |
| Power Source | Electric |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 841459.9080 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
