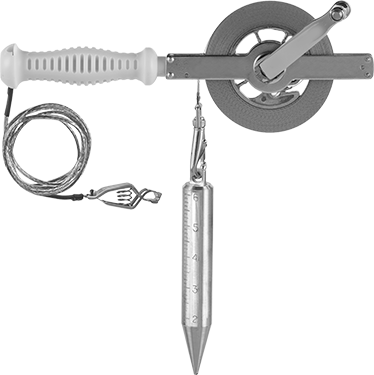

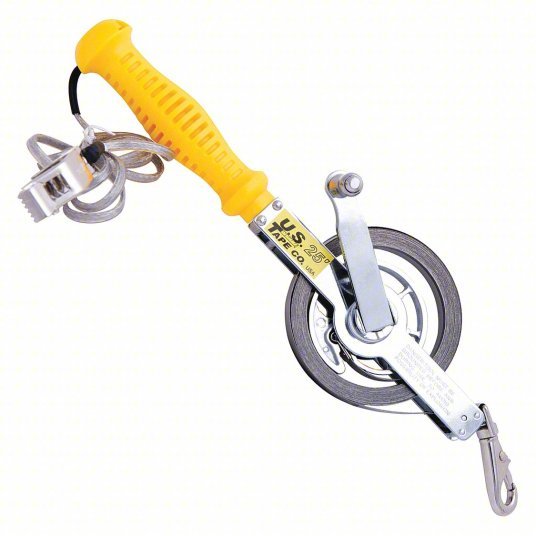

McMaster 1957A31 Liquid-Level Tape Measure for Liquid in Tank 25 Feet Long Chrome-Plated Steel Blade
Also known as oil-gauging tapes, use these tape measures to check the level of oil and other fluids in deep, large containers such as tanks and vats.
Measures Liquid in Tank—Liquid in tank tape measures have a cylindrical plumb bob that sinks to the bottom of the tank. The blade indicates the distance to the surface of the liquid.
Chrome-Plated Steel—Chrome-plated steel blades are for measuring dark liquids.
Rubber Blade Wiper—Strip excess liquid off of a blade as it is reeled in. These wipers fit all Liquid-Level Tape Measures.
|
Measures
|
Liquid in Tank |
|
Reading Direction
|
Bottom to Top |
|
System of Measurement
|
Inch |
|
Length
|
25 ft. |
|
Graduation Location—Graduations (Numeric Graduations)
|
Front Left Side—1/8" (1") |
|
Width
|
1/2" |
|
Thickness
|
0.014" |
|
Graduation Type
|
Printed |
|
Blade Material
|
Chrome-Plated Steel |
|
Orientation
|
Vertical |
|
Plumb Bob
|
|
|
Material
|
Brass |
|
Height
|
6 3/4" |
|
Diameter
|
1" |
|
Weight
|
20 oz. |
|
Shape
|
Cylinder |
|
Reel Material
|
Chrome-Plated Steel |
|
Country of Origin
|
United States |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
Not Compliant |
|
Schedule B Number
|
901780.0000 |
|
USMCA Qualifying
|
Yes |
