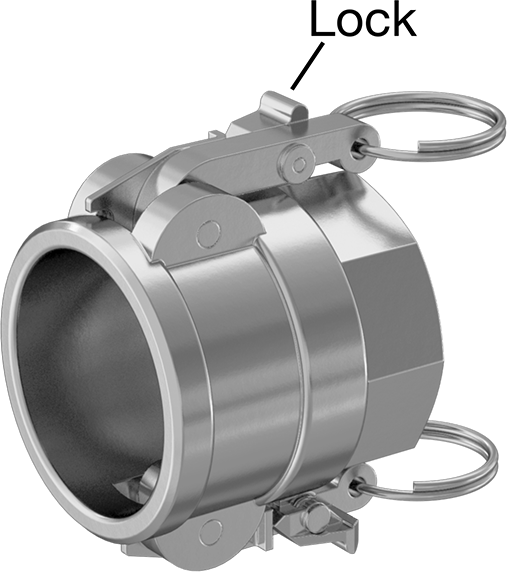

McMaster 2005T54 Aluminum Cam-and-Groove Hose Coupling with Stainless Steel Levers, Straight Socket, Locking, 2 Coupling Size x 2 NPT Female
Original price
$145.31
-
Original price
$145.31
Original price
$145.31
$145.31
-
$145.31
Current price
$145.31
Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to-large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug's body and force the plug against the gasket to form a tight seal. To disconnect, lift both levers and pull out the plug. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings. Aluminum fittings are lighter in weight than 316 stainless steel fittings and have good corrosion resistance.
| For Use With | Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid |
| Shape | Straight |
| Type | Adapter |
| Cam-and-Groove Component | Socket |
| Socket Locking Type | Locking Lever |
| Flow Control | Open |
| Connection Style | Cam-and-Groove Female × Threaded Female |
| Coupling Size | 2 |
| Socket ID | 2 1/2" |
| Pipe Size | 2 |
| Thread Type | NPT |
| Dash Size | 32 |
| Material | Aluminum |
| Number of Levers | 2 |
| Lever Material | 316 Stainless Steel |
| Pull Ring Material | Zinc-Plated Steel |
| Gasket Material | Buna-N Rubber |
| Maximum Pressure | 250 psi @ 72° F |
| Temperature Range | -65° to 250° F |
| Length | 3 3/32" |
| Compatible With | Andrews, Dixon, Ever-Tite, PT Cam-and-Groove |
| Specifications Met | Fed. Spec. A-A-59326 |
| Country of Origin | United States |
