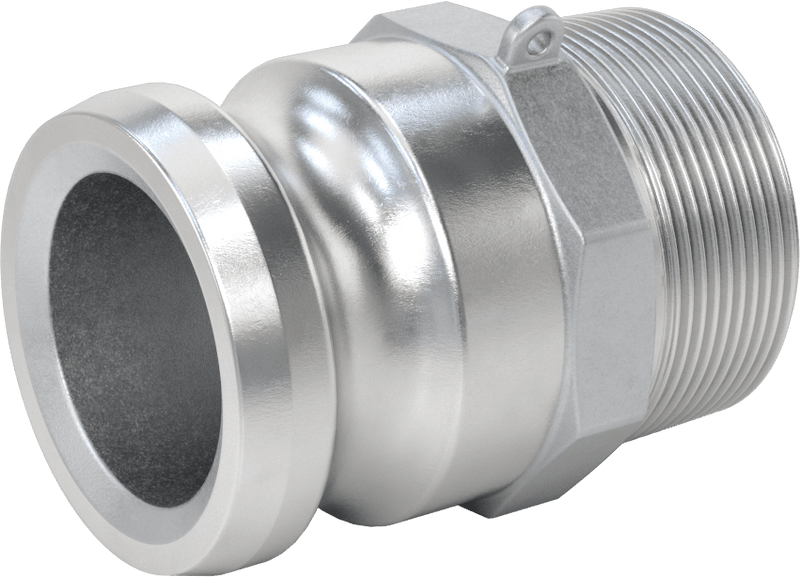

McMaster 2091T65 Aluminum Cam-and-Groove Hose Coupling for Chemicals and Petroleum, Plug, 2 Coupling Size, 2 BSPT Male
Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug’s body and force the plug against the gasket to form a tight seal. To disconnect, lift both levers and pull out the plug. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings.
Aluminum — Aluminum fittings are lighter in weight than 316 stainless steel fittings. They have good corrosion resistance.
Note: To ensure a correct fit, make sure that the plug and socket have the same coupling size.
Warning: Relieve all pressure before disconnecting the couplings. Do not use cam-and-groove couplings with compressed air or gas.
| For Use With | Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid |
| Shape | Straight |
| Type | Adapter |
| Cam-and-Groove Component | Plug |
| Flow Control | Open |
| Connection Style | Cam-and-Groove Male × Threaded Male |
| Coupling Size | 2 |
| Plug OD | 2 1/2" |
| Pipe Size | 2 |
| Thread Type | BSPT |
| Dash Size | 32 |
| Material | Aluminum |
| Maximum Pressure | 250 psi @ 72° F |
| Temperature Range | -65° to 250° F |
| Length | 3 9/16" |
| Compatible With | Andrews Cam-and-Groove, Dixon Cam-and-Groove, Ever-Tite Cam-and-Groove, PT Cam-and-Groove |
| Country of Origin | United States |
| ECCN | EAR99 |
| Schedule B Number | 760900.0000 |
| USMCA Qualifying | Yes |
